OYl L Type Fast Connector
Optic Fiber Fast Connector
OYI L Type Fast Connector
Product Description
Our fiber optic fast connector, the OYI J type, is designed for FTTH (Fiber to The Home), FTTX (Fiber To The X). It is a new generation of fiber connector used in assembly that provides open flow and precast types, meeting the optical and mechanical specifications of standard optical fiber connectors. It is designed for high quality and high efficiency during installation.
Mechanical connectors make fiber terminations quick, easy, and reliable. These fiber optic connectors offer terminations without any hassle and require no epoxy, no polishing, no splicing, and no heating, achieving similar excellent transmission parameters as standard polishing and splicing technology. Our connector can greatly reduce the assembly and setup time. The pre-polished connectors are mainly applied to FTTH cables in FTTH projects, directly at the end-user site.
Product Features
1.Easy and fast installation: takes 30 seconds to learn how to install and 90 seconds to operate in the field.
2.No need for polishing or adhesive the ceramic ferrule with embedded fiber stub is pre-polished.
3.Fiber is aligned in a v-groove through the ceramic ferrule.
4.Low-volatile, reliable matching liquid is preserved by the side cover.
5.A unique bell-shaped boot maintains the mini fiber bend radius.
6.Precision mechanical alignment ensures low insertion loss.
7.Pre-installed, on-site assembly without end face grinding or consideration.
Technical Specifications
|
Items |
OYI L Type |
|
Ferrule Concentricity |
<1.0 |
|
Item Size |
50mm*8.9mm*7.3mm |
|
Applicable For |
Drop cable 2.0*3.0mm ，2.0*1.6mm. & 3.0mm Cable |
|
Fiber Mode |
Single mode or Multi mode |
|
Operation Time |
About 50s (no fiber cut) |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≤-50dB for UPC, ≤-55dB for APC |
|
Fastening Strength Of Bare Fiber |
≥5N |
|
Tensile Strength |
≥50N |
|
Reusable |
≥10 times |
|
Operating Temperature |
-40~+85℃ |
|
Normal Life |
30 years |
Applications
1. FTTx solution and outdoor fiber terminal end.
2. Fiber optic distribution frame, patch panel, ONU.
3. In the box, cabinet, such as wiring into the box.
4. Maintenance or emergency restoration of fiber network.
5. The construction of the fiber end user access and maintenance.
6. Optical fiber access for mobile base stations.
7. Applicable to connection with field mountable indoor cable, pigtail, patch cord transformation of patch cord in.

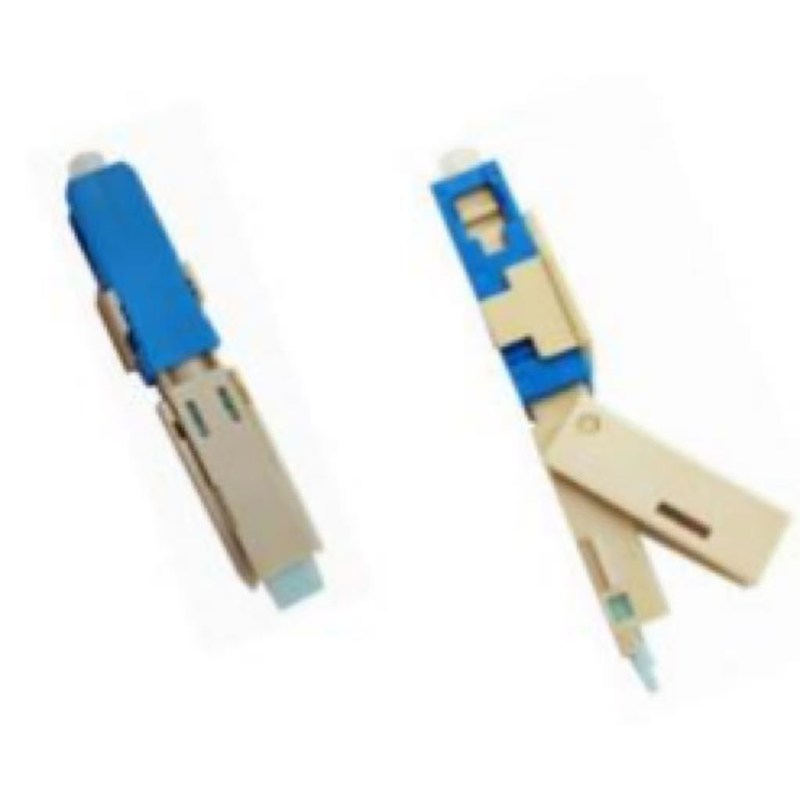

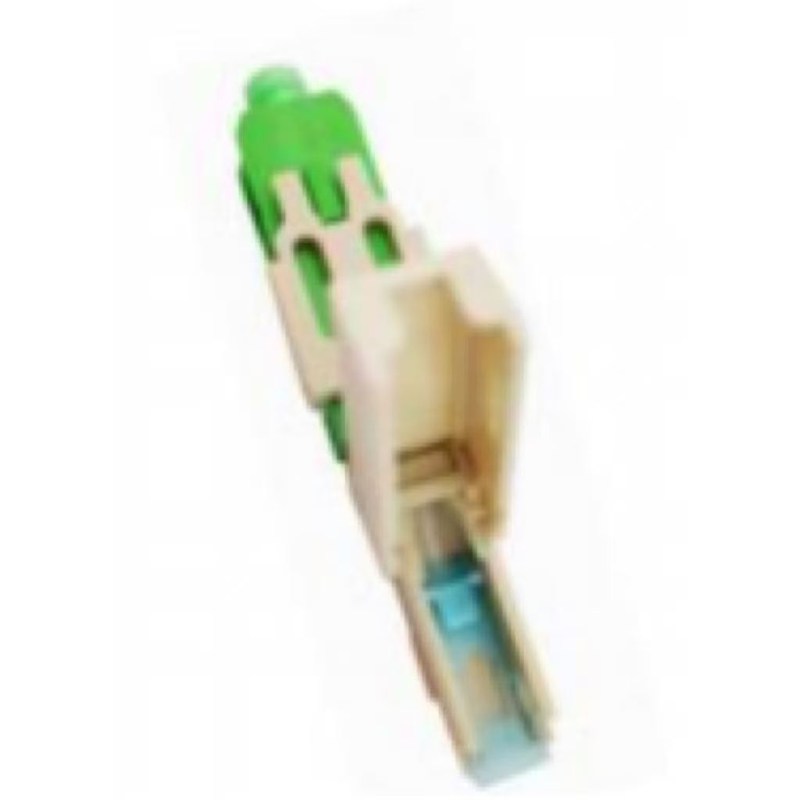

Product Pictures

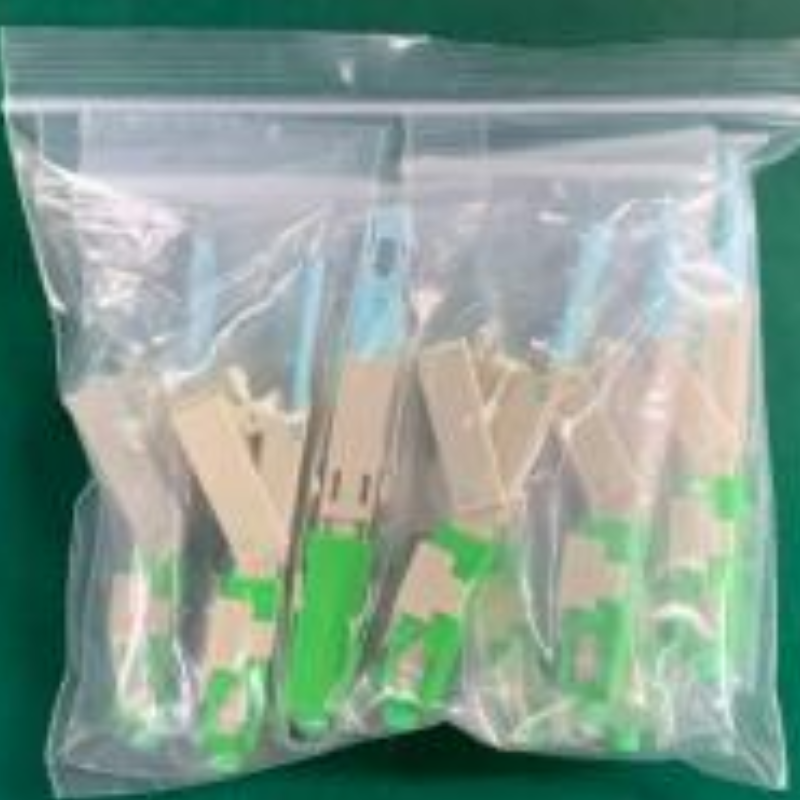

Packaging Information
Inner Box
Outer Carton
1.Quantity: 100pcs/Inner Box, 2000pcs/Outer Carton.
2.Carton Size: 46*32*26cm.
3.N. Weight: 9.75kg/Outer Carton.
4.G. Weight: 10.75kg/Outer Carton.
5.OEM service available for mass quantity, can print logo on cartons.
-
