OYI-OW2 series Type

Outdoor Wall-mount Fiber Optic Distribution Frame

OYI-OW2 series Type

Outdoor Wall-mount Fiber Optic Distribution Frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines. It is an integrated unit for fiber management, and can be used as distribution box. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. Fiber optic termination box is modular so they are applying cable to your existing systems without any modification or additional work. Suitable for installation of FC, SC, ST, LC, etc. adaptors, and suitable for fiber optic pigtail or plastic box type PLC splitters and large working space to integrate the pigtails, cables and adapters.

Product Detail

FAQ

Product Tags

Product Features

1. With steel plates can manage both single fiber and ribbon & bundle fiber cables.

2. FC, LC, SC, ST output interfaces optional.

3. Large working space to integrate the pigtail, cables and adapters.

4. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite, easy for operation.

5. Special design ensures the excess fiber cords and pigtails in good order.

Inner components as follows:

Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers.

Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced cores and the distribution Pigtails.

The brim of the box is sealed.

Applications

1.FTTX access system terminal link.

2.Widely used in FTTH access network.

3.Telecommunication networks.

4.CATV networks.

5.Data communications networks.

6.Local area networks.

Specifications

Model	Fiber Count	Dimension(cm)	Weight(Kg)
OYI-ODF-OW96	96	55x48x26.7	14
OYI-ODF-OW72	72	56 x 48 x 21.2	12
OYI-ODF-OW48	48	46.5x 38.3x 15.5	7
OYI-ODF-OW24	24	46.5x 38.3x 11	6.3
OYI-ODF-OW12	12	46.5x 38.3x 11	6.3

Optional Accessories

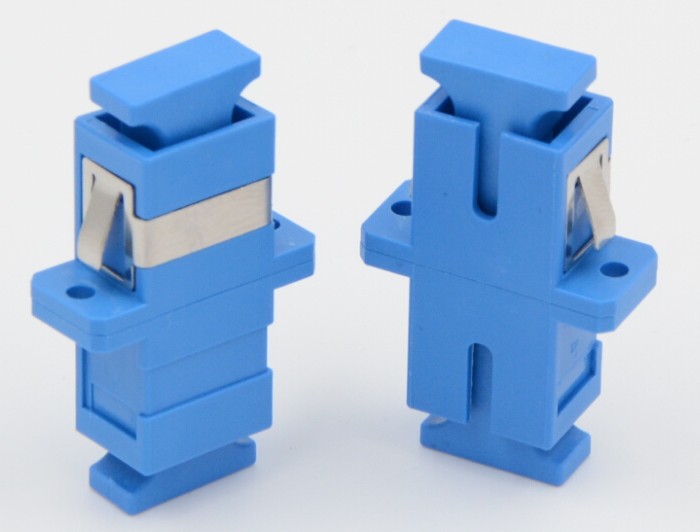

1. SC/UPC simplex Adapter for 19” Panel.

Technical Specifications

Parameters	SM			MM
Parameters	PC	UPC	APC	UPC
Operation Wavelength	1310&1550nm			850nm&1300nm
Insertion Loss (dB) Max	≤0.2	≤0.2	≤0.2	≤0.3
Return Loss (dB) Min	≥45	≥50	≥65	≥45
Repeatability Loss (dB)	≤0.2
Exchangeability Loss (dB)	≤0.2
Repeat Plug-Pull Times	>1000
Operation Temperature (°C)	-20~85
Storage Temperature (°C)	-40~85

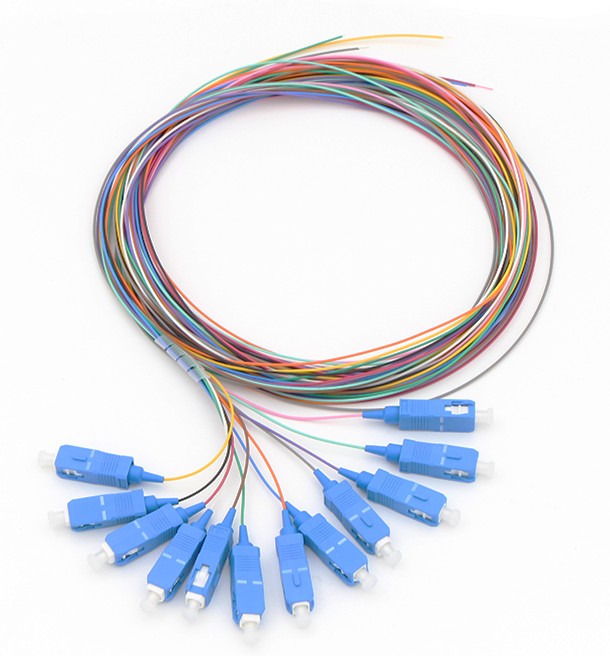

2. SC/UPC 12 colours Pigtails 1.5m tight buffer Lszh 0.9mm.

Technical Specifications

Parameter	FC/SC/LC/S		T	MU/MTRJ		E2000
	SM		MM	SM	MM	SM
	UPC	APC	UPC	UPC	UPC	UPC	APC
Operating Wavelength (nm)	1310/1550		850/1300	1310/1550	850/1300	1310/1550
Insertion Loss (dB)	≤0.2	≤0.3	≤0.2	≤0.2	≤0.2	≤0.2	≤0.3
Return Loss (dB)	≥50	≥60	≥35	≥50	≥35	≥50	≥60
Repeatability Loss (dB)	≤0.1
Interchangeability Loss (dB)	≤0.2
Repeat Plug-pull Times	≥1000
Tensile Strength (N)	≥100
Durability Loss (dB)	≤0.2
Operating Temperature (℃)	-45~+75
Storage Temperature (℃)	-45~+85
