OYI-FOSC-D101M

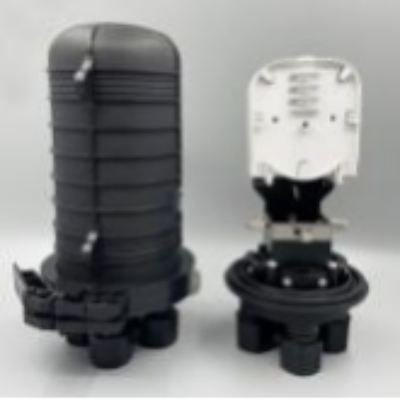

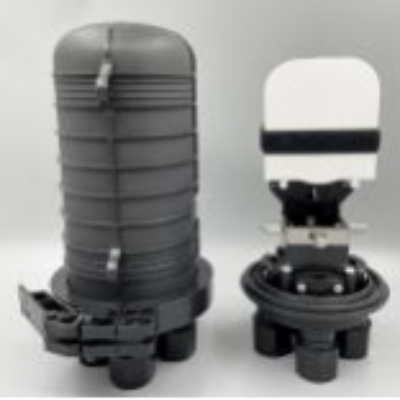

Fiber Optic Splice Closure Mechanical Dome type
OYI-FOSC-D101M
Product Features
1. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
2.The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
3.The closures are applicable to ribbon type optical cable and common optical cable.
4.The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
5.The closure is of small volume, big capacity and convenient maintenance.The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
6.The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance.
Specifications

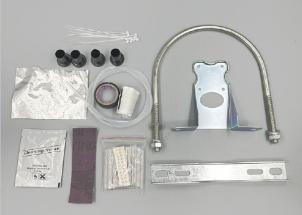

Tag paper:1pcs
Sand paper :1pcs
Silver paper :1pcs
Sealing rubber strip：1pcs
Insulating tape：1pcs
Cleaning tissue：1pcs
Plastic plug：4 pcs
Cable tie:3mm*10mm 8pcs
Fiber protective tube：1 pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 48pcs
Pole accessories:1 pcs（Optional Accessories ）
Pressure testing valve：1pcs （Optional Accessories ）
Earthing deriving device ：1pcs（Optional Accessories ）
Dimensions and Capability
1.Dimensions (D*H)：300mm*190mm
2.Max Capacity：48Cores (12Cores/tray）
3.Number of Cable Entrance/Exit ：1:3 or 2:2

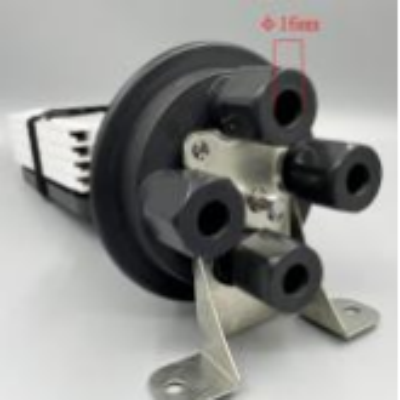

4.Diameter of Cable：4 small round ports(16mm)
Dimensions and Capability
|
Temperature |
-40℃~+60℃ |
|
Humidity |
≤95% (at 40℃) |
|
Air Pressure |
70kPa ~106kPa |
Technical Specifications
|
● |
Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow. |
|
● |
Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ . |
|
● |
Pressurization: there is no breakdown or flashover under 15kVdc/1min between the metal work piece and the earth. |
|
● |
The curvature radius of the fiber 40mm, without extra loss inside the splice tray. |
|
● |
It can bear the axial tensile strength no less than 1000N. |
|
● |
Lifetime: 25 years. |
|
● |
Other performances are all in accordance with the requirement of standard YD/T814-1998. |
Product Pictures
1— Joint closure

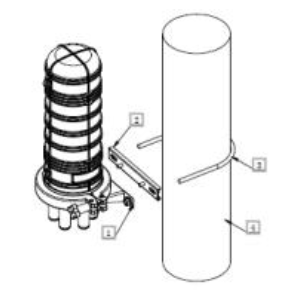

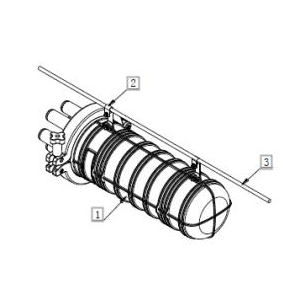

2—Aerial mounting
3—steel wire
1—Fixing plate
2—Mounting plate
3—U-shaped bolt
4—Pole
Product Pictures
Packaging Information
Inner Box
Outer Carton
-
OYI-FAT48A Terminal Box
The 48-core OYI-FAT48A series optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use. The OYI-FAT48A optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage area. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 3 cable holes under the box that can accommodate 3 outdoor optical cables for direct or different junctions, and it can also accommodate 8 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 48 cores capacity specifications to meet the expansion needs of the box. -
OYI-FAT16J-B Series Terminal Box
The 16-core OYI-FAT16J-B optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use. The OYI-FAT16J-B optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 4 cable holes under the box that can accommodate 4 outdoor optical cables for direct or different junctions, and it can also accommodate 16 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 16 cores capacity specifications to accommodate the box’s expansion needs. -
OYI-FAT16F Series Terminal Box
The 16-core OYI-FAT16F optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX (solutions) access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use. The OYI-FAT16F optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 3 cable holes under the box that can accommodate 3 outdoor optical cables for direct or different junctions, and it can also accommodate 16 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 16 cores capacity specifications to accommodate the box’s expansion needs. -
OYI-FOSC-D109M
The OYI-FOSC-D109M dome fiber optic splice closure is used in aerial, wall-mounting, and underground applications for the straight-through and branching splice of the fiber cable. Dome splicing closures are excellent protection of fiber optic joints from outdoor environments such as UV, water, and weather, with leak-proof sealing and IP68 protection. The closure has 10 entrance ports on the end (8 round ports and 2 oval port). The shell of the product is made from ABS/PC+ABS material. The shell and the base are sealed by pressing the silicone rubber with the allocated clamp. The entry ports are sealed by heat-shrinkable tubes. The closures can be opened again after being sealed and reused without changing the sealing material. The closure’s main construction includes the box, splicing, and it can be configured with adapters and optical splitters. -
Bare Fiber Type Splitter
A fiber optic PLC splitter, also known as a beam splitter, is an integrated waveguide optical power distribution device based on a quartz substrate. It is similar to a coaxial cable transmission system. The optical network system also requires an optical signal to be coupled to the branch distribution. The fiber optic splitter is one of the most important passive devices in the optical fiber link. It is an optical fiber tandem device with many input terminals and many output terminals, and is especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH, etc.) to connect the ODF and the terminal equipment and to achieve the branching of the optical signal. -
OYI-ODF-R-Series Type
The OYI-ODF-R-Series type series is a necessary part of the indoor optical distribution frame, specially designed for optical fiber communication equipment rooms. It has the function of cable fixation and protection, fiber cable termination, wiring distribution, and protection of fiber cores and pigtails. The unit box has a metal plate structure with a box design, providing a beautiful appearance. It is designed for 19″ standard installation, offering good versatility. The unit box has a complete modular design and front operation. It integrates fiber splicing, wiring, and distribution into one. Each individual splice tray can be pulled out separately, enabling operations inside or outside the box. The 12-core fusion splicing and distribution module plays the main role, with its function being splicing, fiber storage, and protection. A completed ODF unit will include adapters, pigtails, and accessories such as splice protection sleeves, nylon ties, snake-like tubes, and screws.
If you're looking for a reliable, high-speed fibre optic cable solution, look no further than OYI. Contact us now to see how we can help you stay connected and take your business to the next level.
