16 Cores Type OYI-FAT-H16A Terminal Box
Optic Fiber Terminal/Distribution Box
16 Cores Type OYI-FAT-H16A Terminal Box
Product Features
Total enclosed structure.
Material: ABS, wet-proof, water-proof, dust proof, anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Box can be installed by the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.
Applications
Screw: 4mm*40mm 4pcs
Expension bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Metal ring：4pcs
Key:1pcs
Specifications
|
Material |
Size |
Max Capacity |
Nos of PLC |
Nos of Adaptor |
Weight |
Ports |
|
Strengthen ABS |
A*B*C(mm) 300大210大90 |
Splice 16 Fibers (1trays,16core/tray) |
2 PCS 1X8 PLC or 1PCS 1X16 PLC |
16 pcs of SC(max) |
1.35kg |
4 in 16 out |

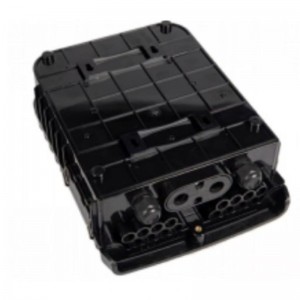

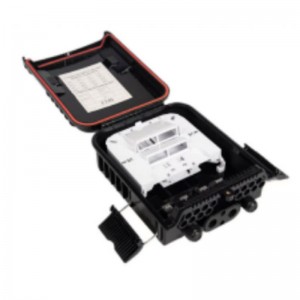

Product Pictures
Packaging Information
1. Quantity: 10pcs/Outer box.
2. Carton Size: 54.5*30.5*49.5cm.
3. N.Weight:15kg/Outer Carton.
4. G.Weight:16kg/Outer Carton.
5. OEM service available for mass quantity, can print logo on cartons.
Inter Box
Outer Carton
-
