OYI-FAT16C Terminal Box

Optic Fiber Terminal/Distribution Box 16 Cores Type

OYI-FAT16C Terminal Box

The 16-core OYI-FAT16C optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use. The OYI-FAT16C optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 3 cable holes under the box that can accommodate 3 outdoor optical cables for direct or different junctions, and it can also accommodate 16 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 16 cores capacity specifications to accommodate the box’s expansion needs.


Product Detail

FAQ

Product Tags

Product Features

1.Total enclosed structure.

2.Material: ABS, waterproof design with IP-65 protection level, dustproof, anti-aging, RoHS.

3.Optical fiber cable, pigtails, and patch cords are running through their own path without disturbing each other.

4.The distribution box can be flipped up, and the feeder cable can be placed in a cup-joint way, making it easy for maintenance and installation.

5.The distribution box can be installed by wall-mounted or pole-mounted methods, suitable for both indoor and outdoor use.

6.Suitable for fusion splice or mechanical splice.

7.2 pcs of 1*8 Splitter or 1 pc of 1*16 Splitter can be installed as an option.

Applications

1. FTTX access system terminal link.

2. Widely used in FTTH access network.

3. Telecommunication networks.

4. CATV networks.

5. Data communications networks.

6. Local area networks.

Specifications

Item No.

Description

Weight (kg)

Size (mm)

OYI-FAT16C-SC

For 16PCS SC Simplex Adapter

1

300*255*95

OYI-FAT16C-PLC

For 1PC 1*16 Cassette PLC

1

300*255*95

Material

ABS/ABS+PC

Colour

White, Black, Gray or customer’s request

Waterproof

IP65

The Installation Instruction of the Box

1.Wall hanging

1.1 According to the distance between the backplane mounting holes, drill 4 mounting holes on the wall and insert the plastic expansion sleeves.

1.2 Secure the box to the wall using M6 * 40 screws.

1.3 Position the upper end of the box into the wall hole and then use M6* 40 screws to secure the box to the wall.

1.4 Check the installation of the box and close the door once it is confirmed to be qualified. To prevent rainwater from entering the box, tighten the box using a key column.

1.5 Insert the outdoor optical cable and FTTH drop optical cable according  to the construction requirements.

2.Hanging rod installation

2.1  Remove the box installation backplane and hoop, and insert the hoop into the installation backplane.

2.2 Fix the backboard on the pole through the hoop. To prevent accidents, it is necessary to check

whether the hoop locks the pole securely and ensure that the box is firm and reliable, with no looseness.

2.3 The installation of the box and the insertion of the optical cable are the same as before.

Product Pictures

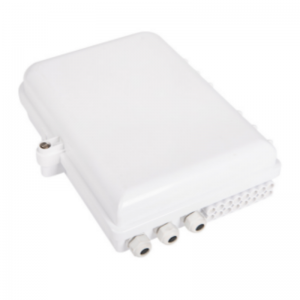

OYI-FAT16C

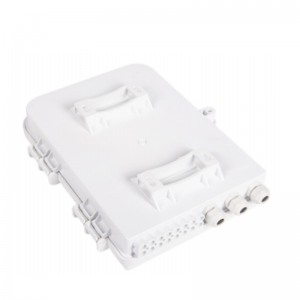

OYI-FAT16C (1)

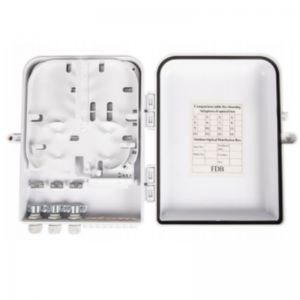

OYI-FAT16C (2)

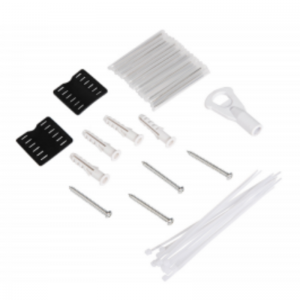

OYI-FAT16C (3)

Packaging Information

1.Quantity: 10pcs/Outer box.
2.Carton Size: 53*32*53.5cm.
3.N.Weight: 14kg/Outer Carton.
4.G.Weight: 14.5kg/Outer Carton.
5.OEM service available for mass quantity, can print logo on cartons.

Inter Box
Inter Box12
Outer Carton

Inter Box

Outer Carton

Outer Carton223
Snipaste_2026-01-05_16-25-27
