OYI-FAT-H08A Terminal Box
Optic Fiber Terminal/Distribution Box 8 Cores Type
OYI-FAT H08C1 Terminal Box
Product Features
1.Total enclosed structure.
2.Material: PP, wet-proof,water-proof,dust proof,anti-aging, protection level up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Box can be installed by the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.
Configuration
| Material | Size< | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
|
Strengthen PP |
A*B*C(mm) 340*240*120 |
Splice 8 Fibers (1trays,8 core/tray) |
/ | 8 pcs of SC(max) | 1.1kg | 2 in 8 out |
Standard Accessories
1.Screw: 4mm*40mm 4pcs
2.Expansion bolt: M6 4pcs
3.Cable tie:3mm*10mm 6pcs
4.Heat-shrink sleeve:1.0mm*3mm*60mm 8pcs
5.Key:1pc
6.hoop ring：4pcs
7.Insulating tape：1pc

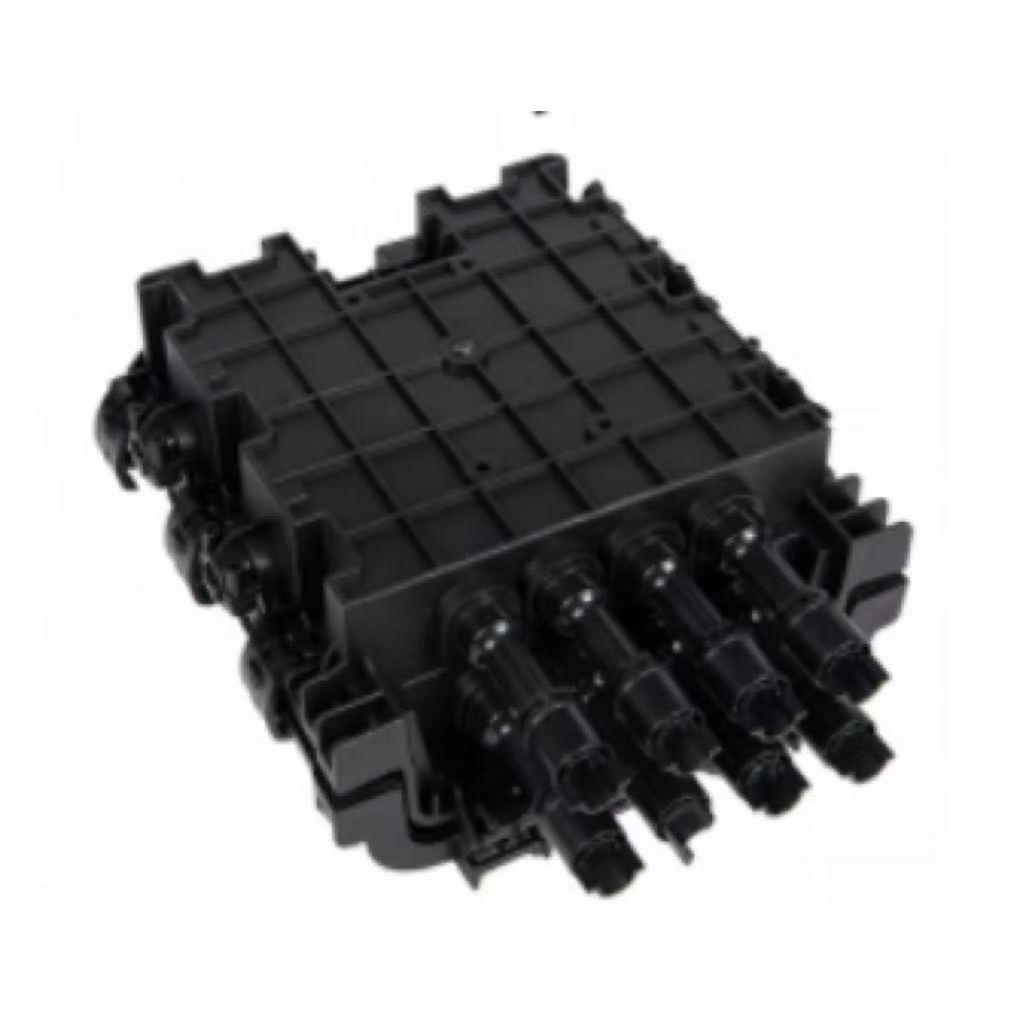

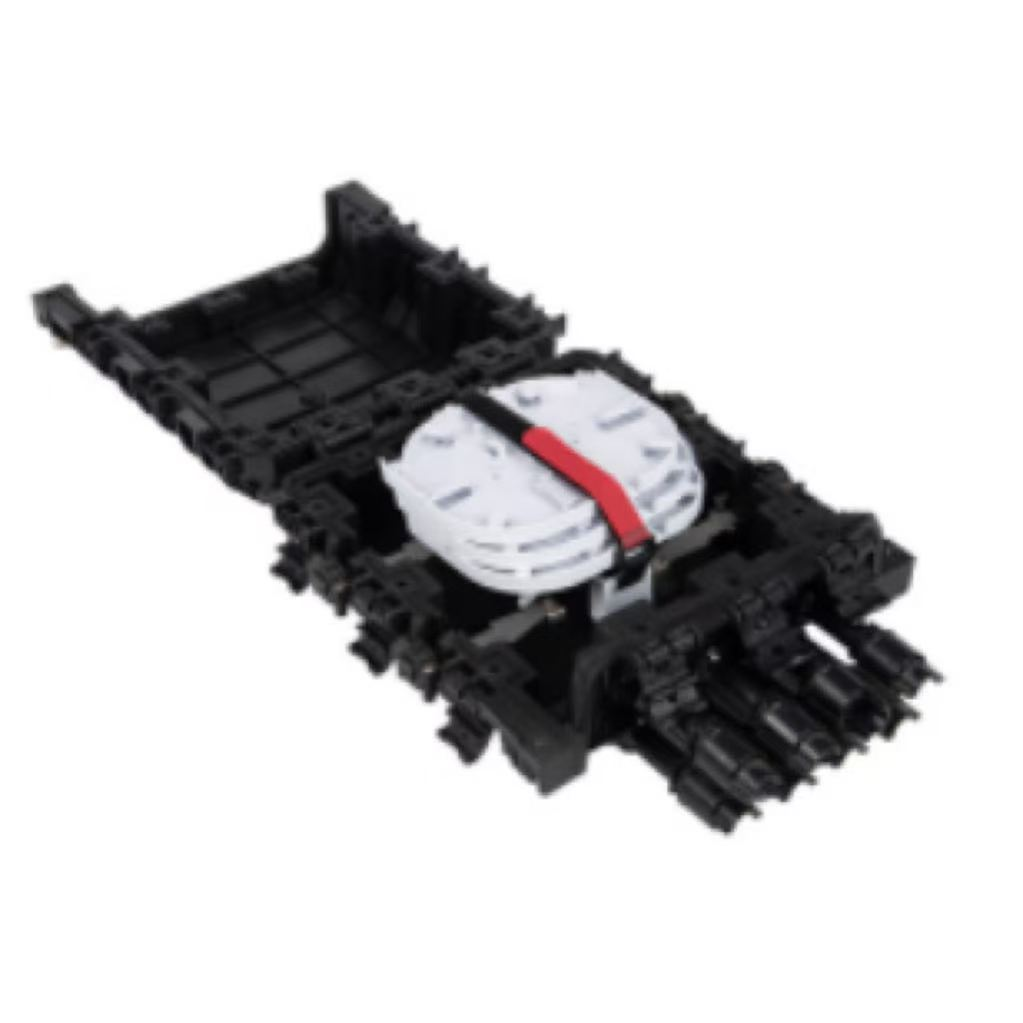

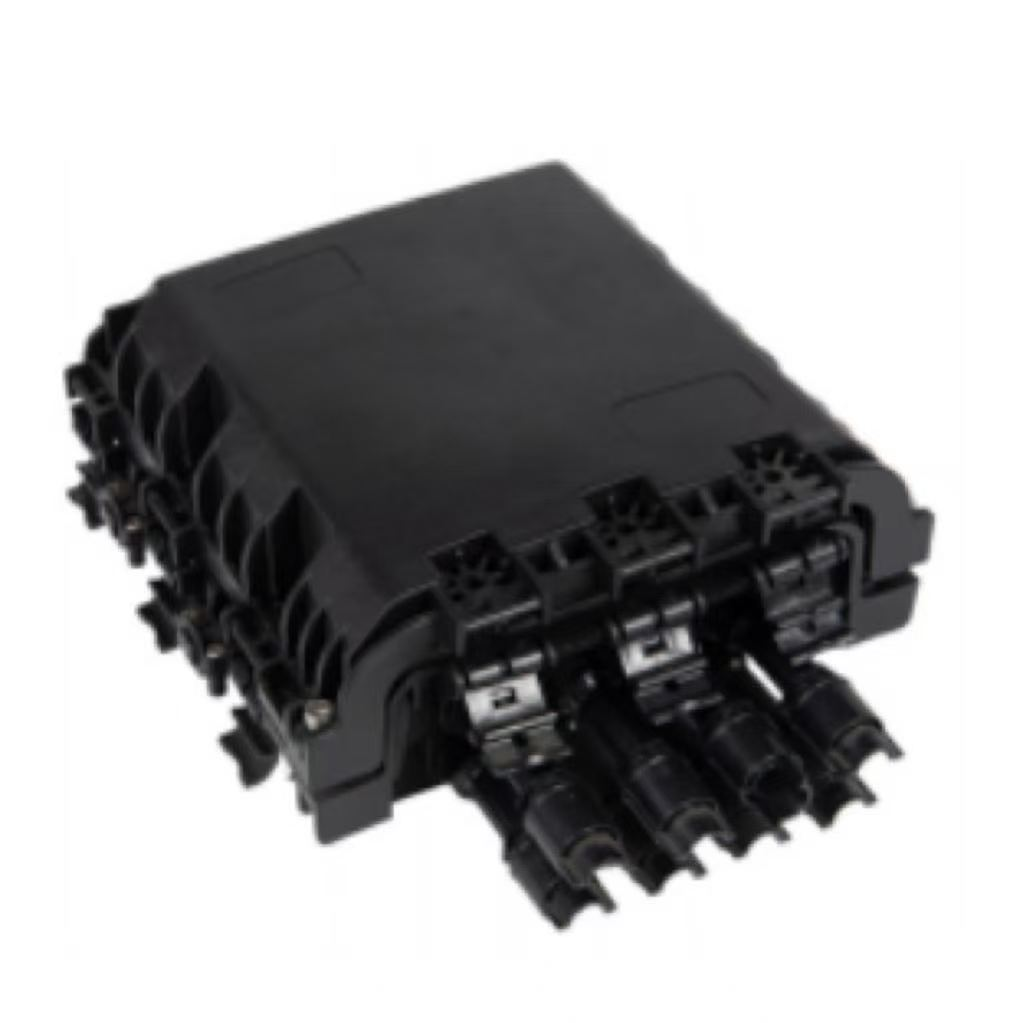

Product Pictures
Packaging Information
| Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
| Strengthen PP | A*B*C(mm) 340*240*120 | Splice 8 Fibers (1trays,8 core/tray) | / | 8 pcs of SC(max) | 1.1kg | 2 in 8 out |
Inner Box

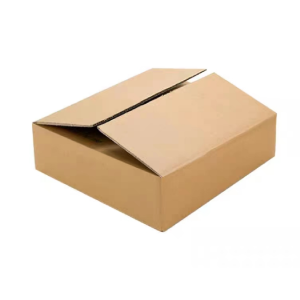

Outer Carton
-
