FTTH Drop Cable Suspension Tension Clamp S Hook B type
Overhead Line Fittings
FTTH Drop Cable Suspension Tension Clamp S Hook B type
Product Features
1. Good insulation properties.
2. Can be re-entered and reused.
3. Easy adjustment of cable slack to apply proper tension.
4. Plastic components are resistant to weather and corrosion.
5. No special tools are required for installation.
6. Available in various shapes and colors.
Specifications
|
Base Material |
Size (mm) |
Weight (g) |
Cable Size (mm) |
Breaking Load (kn) |
|
PA6 or PA66 |
120*72*15 |
28.3 |
3-6mm |
1.2 |
Applications
1. Fixing drop wire on various house attachments.
2. Preventing electrical surges from reaching the customer premises.
3. Supporting various cables and wires.

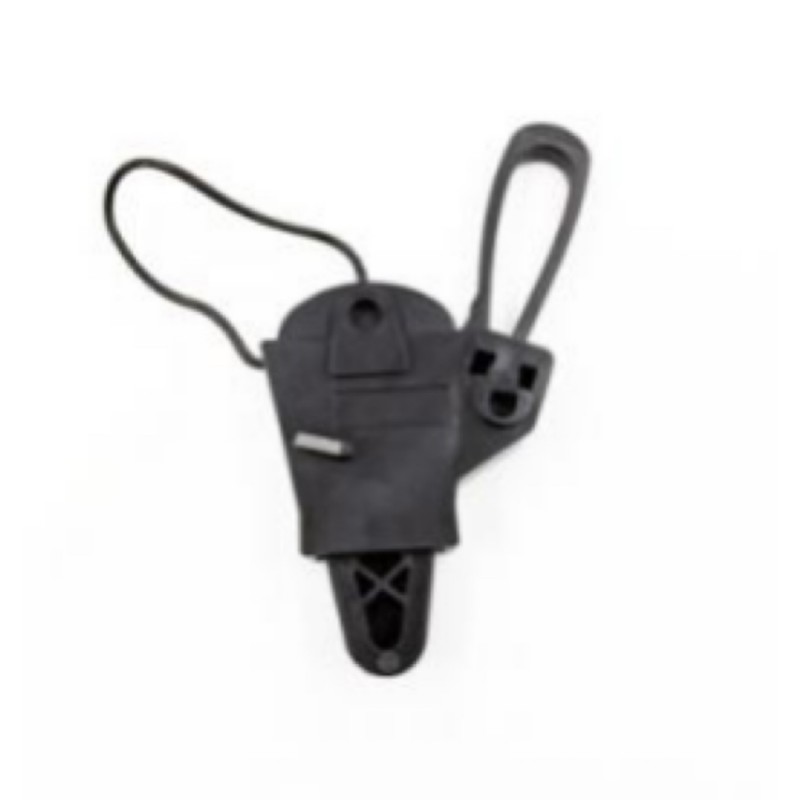

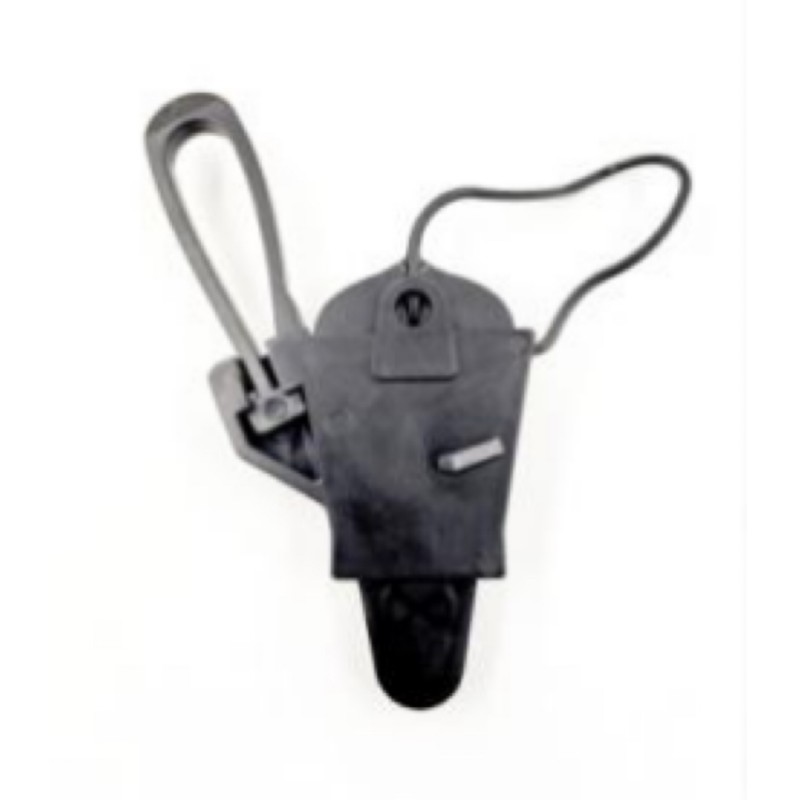

Product Pictures

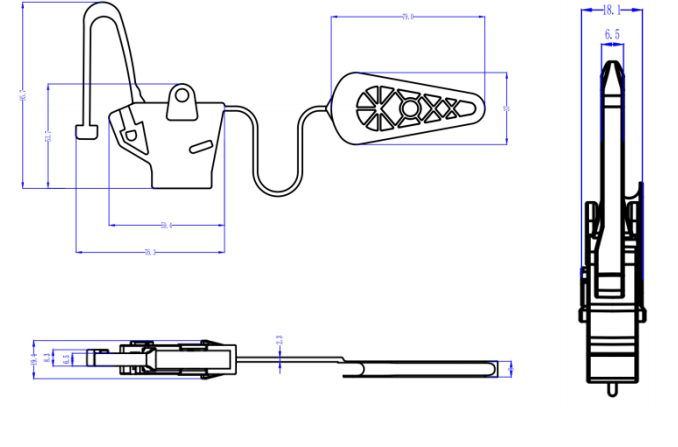

Drawings
Packaging Information
Quantity: 300pcs/Outer box.
1. Carton Size: 40*30*30cm.
2. N.Weight: 9.5kg/Outer Carton.
3. G.Weight: 10kg/Outer Carton.
4. OEM service available for mass quantity, can print logo on cartons.
Inner Box
Outer Carton
-
