OYI-FAT 24C
24 Core Fiber Optic Distribution Box
OYI-FAT 24C
Product Features
1. Total enclosed structure.
2. Material: ABS, wet-proof、water-proof、dust proof、anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor. Installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Configuration
|
Material |
Size |
Max Capacity |
Nos of PLC |
Nos of Adaptor |
Weight |
Ports |
|
Strengthen ABS |
A*B*C(mm) 340*220*105 |
Splice 96Fibers (1trays,24 core/tray) |
/ |
24 pcs of SC (max) |
1.45kg |
4 in 24 out |
Packing List
|
PCS/CARTON |
Gross Weight（Kg） |
Net Weight（Kg） |
Carton Size（cm） |
Cbm（m³） |
|
10 |
16.5 |
15.5 |
42*31*64 |
0.085 |

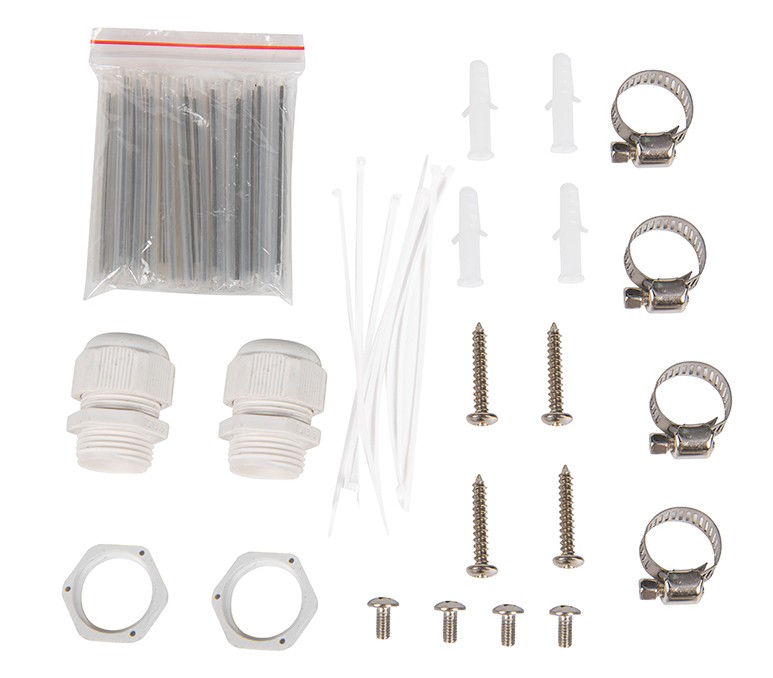

Standard Accessories
● Screw: 4mm*40mm 4pcs
● Expension bolt: M6 4pcs
● Cable tie:3mm*10mm 6pcs
● Heat-shrink sleeve:1.0mm*3mm*60mm 24pcs
● Hose clamps：4pcs sheet iron：2pcs
● Key:1pcs
-
