OYI-OCC-G Type （24-288）steel TYPE
Fiber Optic Distribution Cross-Connection Terminal Cabinet
OYI-OCC-G Type （24-288）steel TYPE
Product Features
1.Material: 1.2MM SECC (GALVANIZED STEEL SHEET).
2. Single. And protection level: lP65.
3.Good design for inner structure, easy installation.
4. Clear indication of splicing and distribution.
5. The adapter can be SC, FC, LC etc.
6. Enough storage space inside.
7. Reliable cable fixation device and grounding device.
8. Good design of splicing routing and guarantee bending radius of fiber optic.
9.Max Capacity:288-cores(LC576cores)，24trays, 12core per tray.
Specifications
1.Nominal work wave-length:850nm,1310nm, 1550nm.
2.Protection level: lP65.
3.Work Temperature: -45℃~+85 ℃.
4.Relative humidity: ≤85% (+30℃).
5.Atmospheric pressure: 70~106 Kpa.
6.Insertion loss: ≤0.2dB.
7.Return loss: ≥45dB (PC),55dB (UPC),60dB (APC).
8.lsolation resistance (between frame and protection grounding)>1000 MQ/500V(DC).

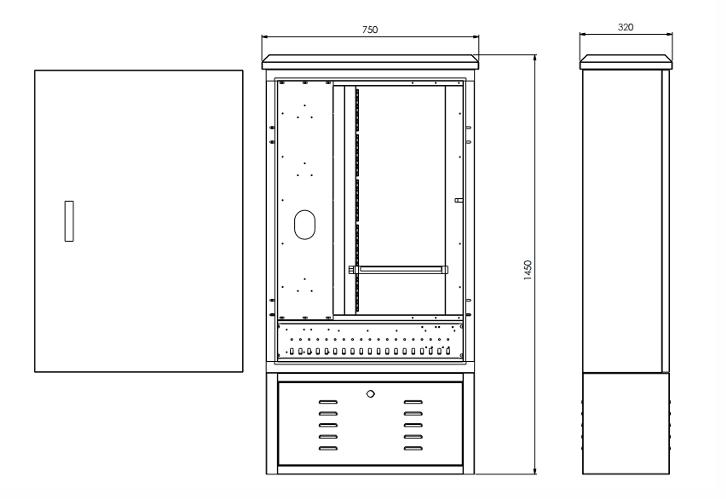

9.Product Size:1450*750*320mm.

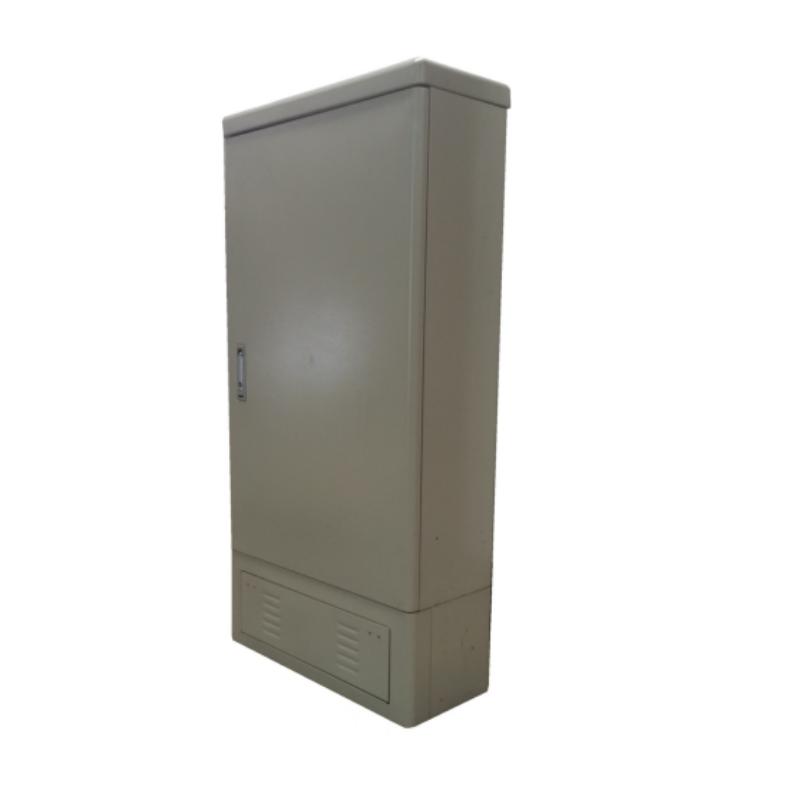

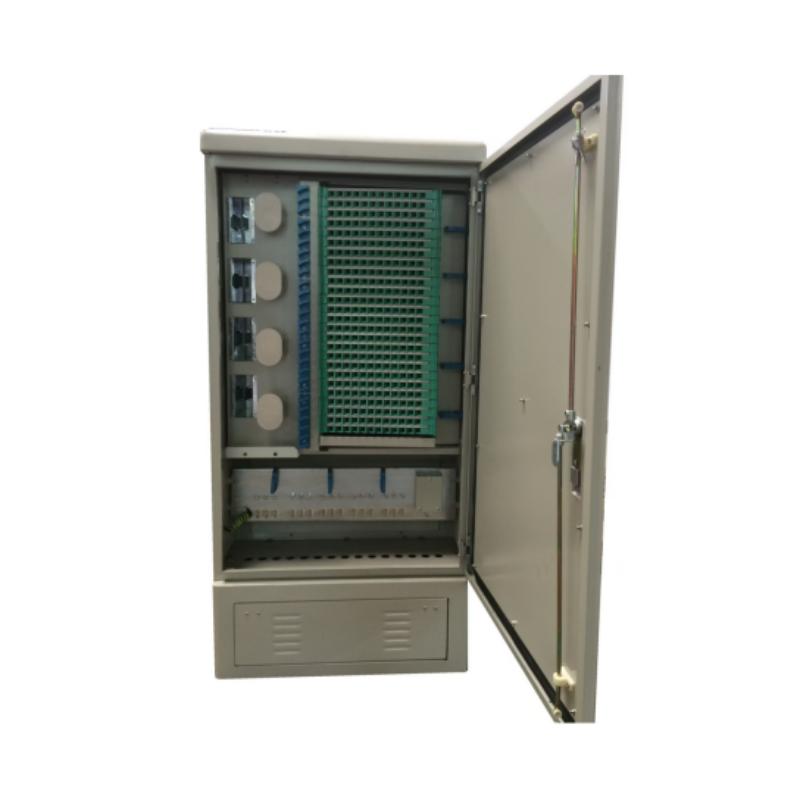

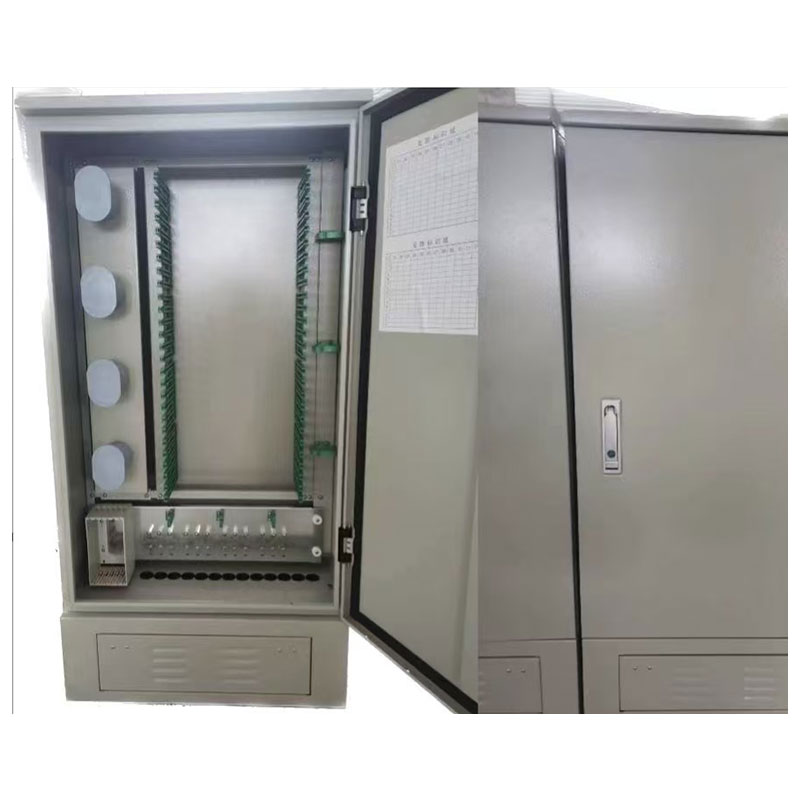

Product Picture
(The pictures are for reference and can be customized according to customer needs.)

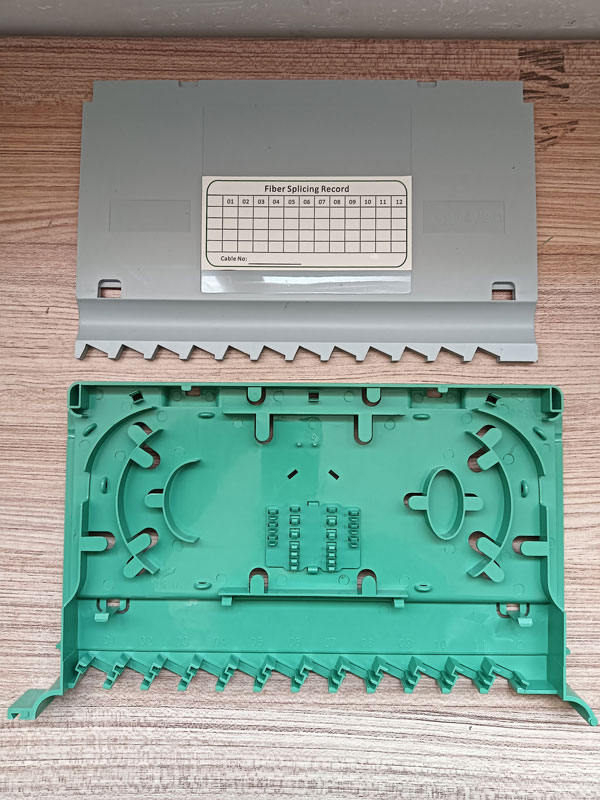

Tray Picture

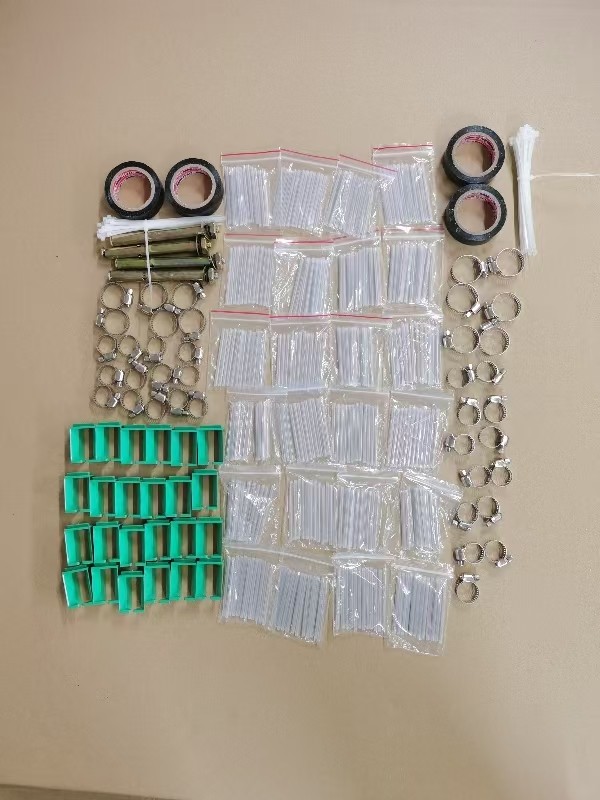

Standard accessories
Optional Accessories

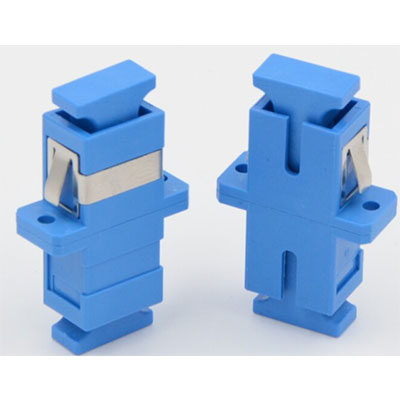

SM, Simplex Adapter SC/UPC
General properties:
Note: the picture provides a reference only!
Technical characteristics:
|
Type |
SC/UPC |
|
Insert loss (dB) |
≤0.20 |
|
Repeatability (dB) |
≤0.20 |
|
Interchangeability (dB) |
≤0.20 |
|
Material of sleeve |
Ceramic |
|
Operating temperature (℃) |
-25~+70 |
|
Storage temperature (℃) |
-25~+70 |
|
Industrial standard |
IEC 61754-20 |

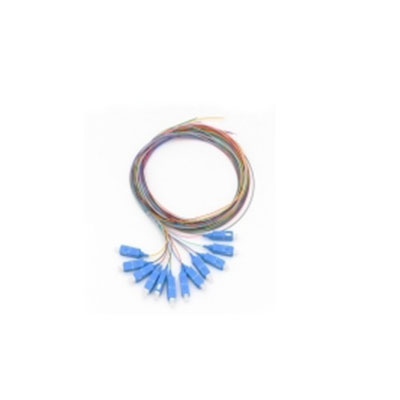

Tight Buffer Pigtail, SC/UPC, OD:0.9±0.05mm, length 1.5m, G652D fiber, PVC sheath, 12 Colours.
