OYI-FAT16F Series Terminal Box

Optic Fiber Terminal/Distribution Box 16 Cores Type

OYI-FAT16F Series Terminal Box

The 16-core OYI-FAT16F optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX (solutions) access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use. The OYI-FAT16F optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 3 cable holes under the box that can accommodate 3 outdoor optical cables for direct or different junctions, and it can also accommodate 16 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 16 cores capacity specifications to accommodate the box’s expansion needs.

Product Detail

FAQ

Product Tags

Product Features

1. Total enclosed structure.

2. Material: ABS, waterproof design with IP-65 protection level, dustproof, anti-aging, RoHS.

3. Optical Fiber Cable, pigtails, and patch cords are running through their own path without disturbing each other.

4. The distribution box can be flipped up, and the feeder cable can be placed in a cup-joint way, making it easy for maintenance and installation.

5. The distribution box can be installed by wall-mounted, Aerial mounting, or pole-mounted methods, suitable for both indoor and outdoor use.

6. Suitable for fusion splice or mechanical splice.

7. 2 pcs of 1*8 Splitter or 1 pc of 1*16 Splitter can be installed as an option.

8. With muti layered design, the box can be installed and maintained easily, the fusion and termination are completely separated.

Specifications

Item No.	Description	Weight (kg)	Size (mm)
OYI-FAT16F	For 16PCS SC Simplex Adapter	1.15	30026080
OYI-FAT16F-PLC	For 1PC 1*16 Cassette PLC	1.15	30026080
Material	ABS/ABS+PC
Colour	Black, Gray or customer’s request
Waterproof	IP65

Applications

1. FTTX access system terminal link.

2. Widely used in FTTH access network.

3. Telecommunication networks.

4. CATV networks.

5. Data communications networks.

6. Local area networks.

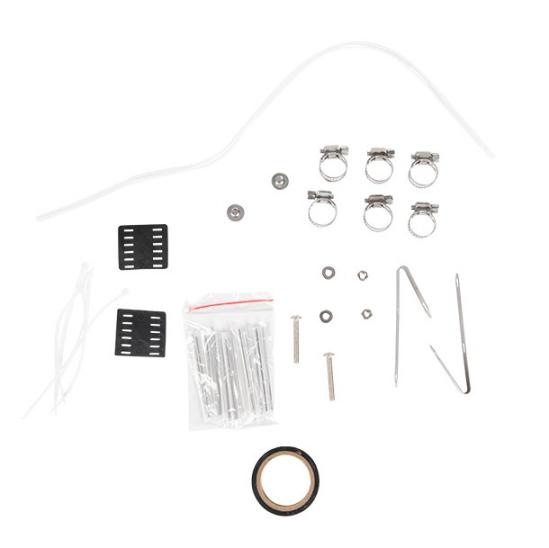

Standard Accessories

1. Screw:4mm*40mm 2pcsExpansion bolt: M6 2pcs

2. Cable tie:3mm*10mm 6pcs

3. Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs

4. Hook:2pcs hoop ring:6pcs TPR black block:2 pcs

5. Fiber protective tube: 1pcs

6. Insulating tape:1pcs

Packaging Information

1. Quantity: 8pcs/Outer box.

2. Carton Size: 42*31*54cm.

3. N. Weight: 13kg/Outer Carton.

4. G. Weight: 13.5kg/Outer Carton.

5. OEM service available for mass quantity, can print logo on cartons.

Inter Box

Outer Carton
