OYI-FOSC-D106H
Fiber Optic Splice Closure Heat Shrink Type Dome Closure
OYI-FOSC-D106H
Product Features
1. High-quality PP+ABS materials are optional, which can ensure harsh conditions such as vibration and impact.
2. Structural parts are made of high-quality stainless steel, providing high strength and corrosion resistance, making them suitable for various environments.
3. The structure is strong and reasonable, with a heat shrinkable sealing structure that can be opened and reused after sealing.
4. It is well water and dust-proof, with a unique grounding device to ensure sealing performance and convenient installation. The protection grade reaches IP68.
5. The splice closure has a wide application range, with good sealing performance and easy installation. It is produced with high-strength engineering plastic housing that is anti-aging, corrosion-resistant, high-temperature resistant, and has high mechanical strength.
6. The box has multiple reuse and expansion functions, allowing it to accommodate various core cables.
7. The splice trays inside the closure are turn-able like booklets and have adequate curvature radius and space for winding optical fiber, ensuring a curvature radius of 40mm for optical winding.
8. Each optical cable and fiber can be operated individually.
9. Sealed silicone rubber and sealing clay are used for reliable sealing and convenient operation during the opening of the pressure seal.
10. The closure is of small volume, big capacity, and convenient maintenance. The elastic rubber seal rings inside the closure have good sealing and sweat-proof performance. The casing can be opened repeatedly without any air leakage. No special tools are required. The operation is easy and simple. An air valve is provided for the closure and is used to check the sealing performance.
11. Designed for FTTH with adapter if needed.
Technical Specifications
|
Item No. |
OYI-FOSC-D106H |
|
Size (mm) |
Φ220*470 |
|
Weight (kg) |
2.5 |
|
Cable Diameter (mm) |
Φ7~Φ21 |
|
Cable Ports |
1 in (45*65mm), 6 out (21mm) |
|
Max Capacity of Fiber |
288 |
|
Max Capacity of Splice |
48 |
|
Max Capacity of Splice Tray |
6 |
|
Cable Entry Sealing |
Heat-shrinking |
|
Life span |
More Than 25 Years |
Applications
1.Telecommunications, railway, fiber repair, CATV, CCTV, LAN, FTTX.
2.Using communication cable lines overhead, underground, direct-buried, and so on.
Standard Accessories
Tag paper:1pcs
Sand paper :1pcs
Spanner：1pcs
Sealing rubber strip：1pcs
Insulating tape：1pcs
Cleaning tissue：1pcs
Cable ties：3mm*10mm 12pcs
Fiber protective tube：3pcs
Heat-shrink tubing：1bag

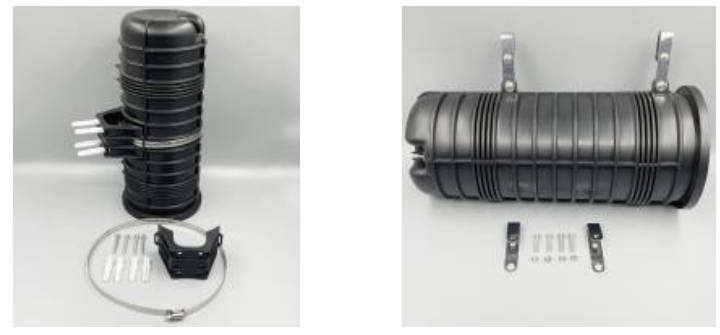

Standard Accessories Optional Accessories
|

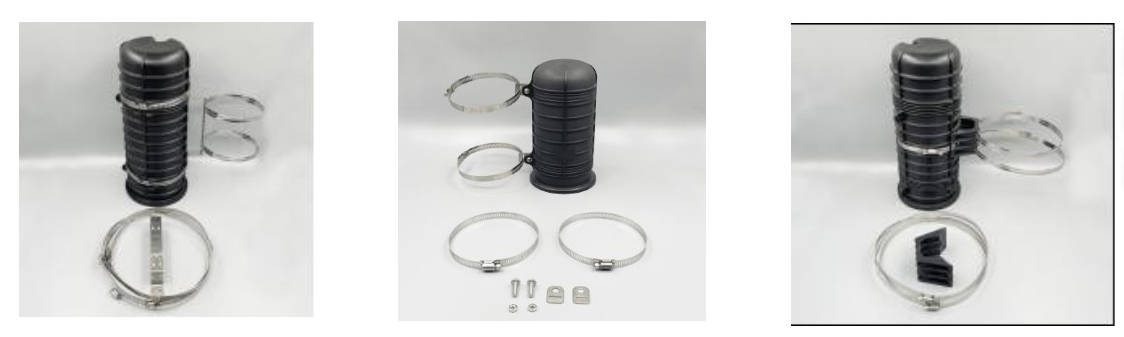

Pole mounting A |
Pole mounting B |
Pole mounting（C） |

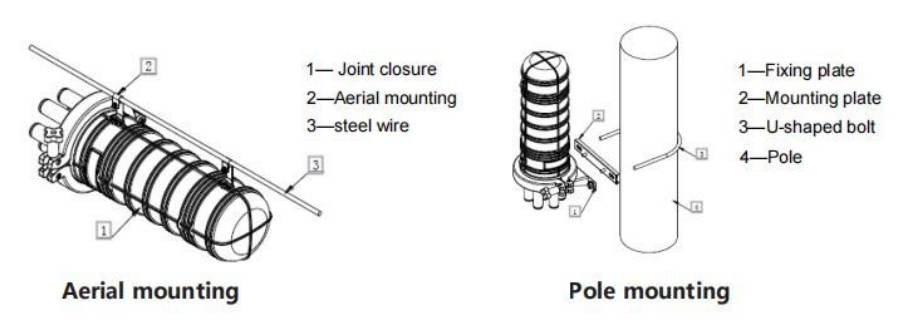

Wall mounting Aerial mounting
Packaging Information
1.Quantity: 6pcs/Outer box.
2.Carton Size: 60*47*50cm.
3.N. Weight: 17kg/Outer Carton.
4. G. Weight: 18kg/Outer Carton.
5. OEM service available for mass quantity, can print logo on cartons.

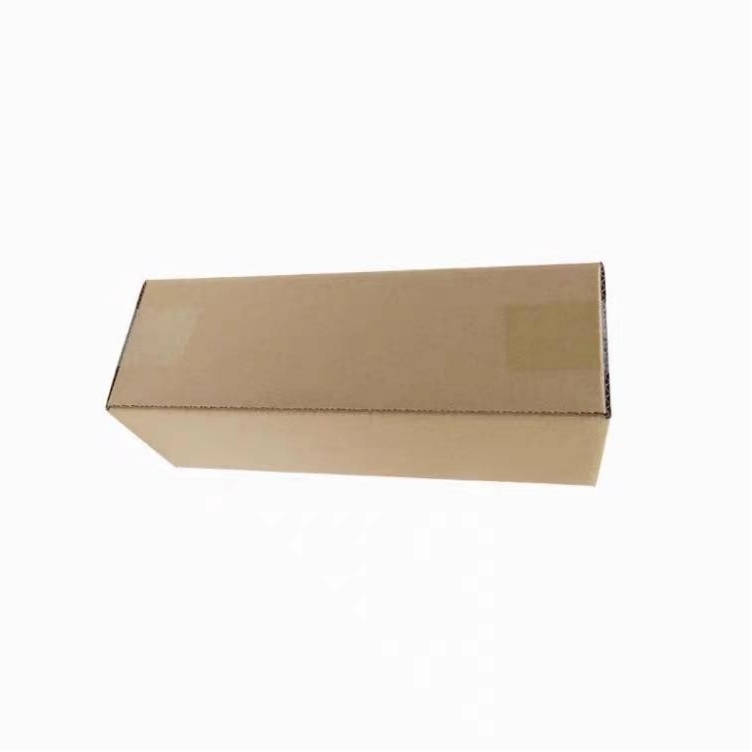

Inter Box
Outer Carton
-
