OYI-F402 Panel

Optic patch panel provides branch connection for fiber termination. It is an integrated unit for fiber management, and can be used as distribution box. It divides into fix type and sliding-out type. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. Fiber optic termination box is modular so they are applicable to your existing systems without any modification or additional work.
Suitable for installation of FC, SC, ST, LC, etc. adaptors, and suitable for fiber optic pigtail or plastic box type PLC splitters.

Product Detail

FAQ

Product Tags

Product Description

Optic patch panel provides branch connection for fiber termination. It is an integrated unit for fiber management, and can be used as distribution box. It divides into fix type and sliding-out type. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. Fiber optic termination box is modular so they are applicable to your existing systems without any modification or additional work.

Suitable for installation of FC, SC, ST, LC, etc. adaptors, and suitable for fiber optic pigtail or plastic box type PLC splitters.

Product Features

1. Wall Mounted type.

2. Single door self-locking type Steel Structure.

3. Dual Cable entry with cable gland diameter range from (5-18mm).

4. One port with Cable gland, another one with sealing rubber.

5. Adapters with pigtails pre-installed into the wall box.

6. Connector type SC /FC/ST/LC.

7. Incorporated with locking mechanism.

8. Cable clamp.

9. Strength member tie off.

10. Splice tray: 12 position with heat shrink.

11. Body colour-Black.

Applications

1. FTTX access system terminal link.

2. Widely used in FTTH access network.

3. Telecommunication networks.

4. CATV networks.

5. Data communications networks.

6. Local area networks.

Specifications

Product Name	wall mounted single mode SC 4 port fiber optic patch panel
Dimension(mm)	20011035mm
Weight (Kg)	1.0mm Q235 cold rolled steel sheet, Black or Light Gray
Adapter Type	FC, SC, ST, LC
Curvature radius	≥40mm
Working temperature	-40℃ ~ +60℃
Resistance	500N
Design standard	TIA/EIA568. C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1

Accessories

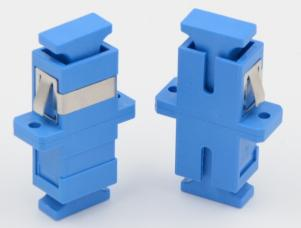

1. SC/UPC simplex Adapter

Technical Specifications

Parameters		SM			MM
	PC		UPC	APC	UPC
Operation Wavelength		1310&1550nm			850nm&1300nm
Insertion Loss (dB) Max	≤0.2		≤0.2	≤0.2	≤0.3
Return Loss (dB) Min	≥45		≥50	≥65	≥45
Repeatability Loss (dB)	≤0.2
Exchangeability Loss (dB)	≤0.2
Repeat Plug-Pull Times	＞1000
Operation Temperature (℃)	-20~85
Storage Temperature (℃)	-40~85

2. SC/UPC Pigtails 1.5m tight buffer Lszh 0.9mm

Parameter	FC/SC/LC/S		T	MU/MTRJ		E2000
	SM		MM	SM	MM	SM
	UPC	APC	UPC	UPC	UPC	UPC	APC
Operating Wavelength (nm)	1310/1550		850/1300	1310/1550	850/1300	1310/1550
Insertion Loss (dB)	≤0.2	≤0.3	≤0.2	≤0.2	≤0.2	≤0.2	≤0.3
Return Loss (dB)	≥50	≥60	≥35	≥50	≥35	≥50	≥60
Repeatability Loss (dB)	≤0.1
Interchangeability Loss (dB)	≤0.2
Repeat Plug-pull Times	≥1000
Tensile Strength (N)	≥100
Durability Loss (dB)	≤0.2
Operating Temperature (℃)	-45~+75
Storage Temperature (℃)	-45~+85

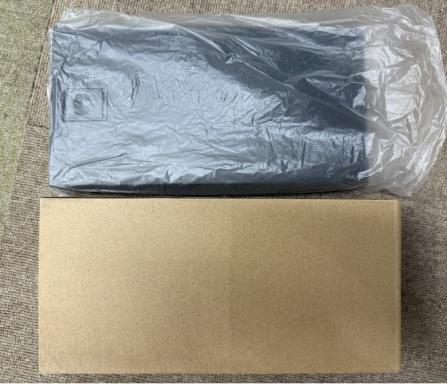

Packaging Information

Inter Box

Outer Carton
