Anchoring Clamp OYI-TA03-04 Series
Hardware Products Overhead Line Fitting
Anchoring Clamp OYI-TA03-04 Series
Product Features
1. Good anti-corrosion performance.
2. Abrasion and wear resistant.
3. Maintenance-free.
4. Durable.
5. Easy installation.
6. Applicable range of ultra large wire diameter
Specifications
|
Model |
Size |
Material |
Weight |
Breaking Load |
Cable Diameter |
Warranty Time |
|
OYI-TA03 |
223*64*55m m |
PA6+SS201 |
126 g |
3.5KN |
4-22 mm |
10 years |
|
OYI-TA04 |
223*56*55m m |
PA6+SS201 |
124 g |
3.5KN |
4-22 mm |
10 years |
Applications
1. Hanging cable.

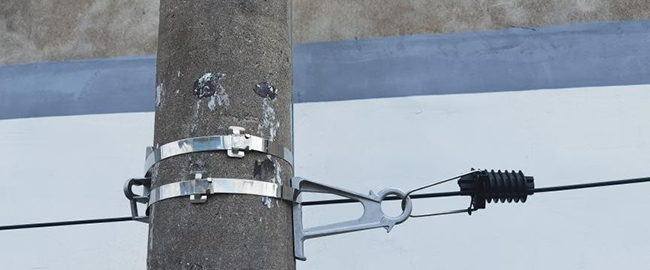

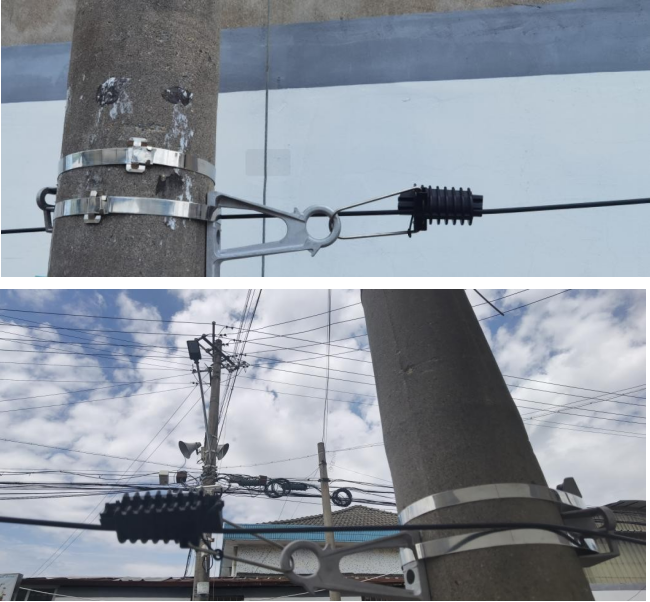

2. Propose a fitting covering installation situations on poles.
3. Power and overhead line accessories.
4. FTTH fiber optic aerial cable.
Dimensional Drawings

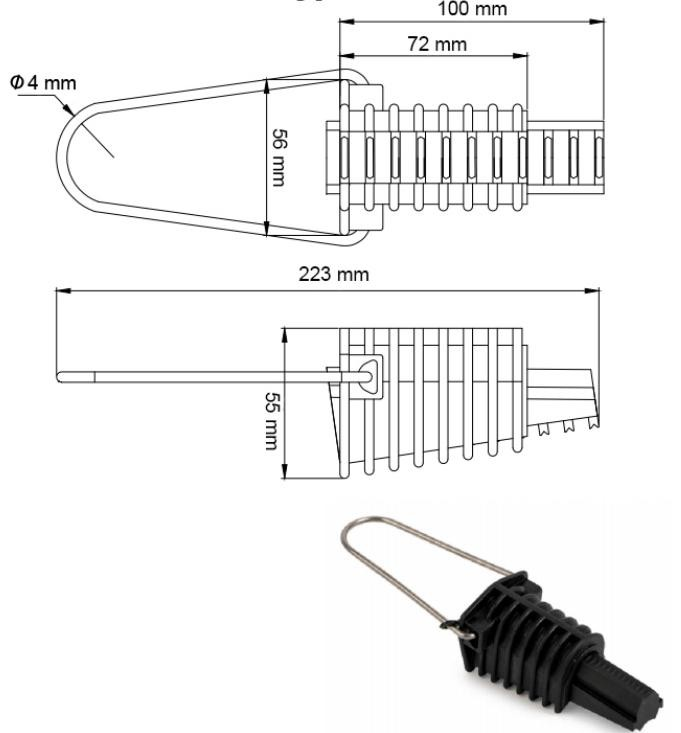

OYI-TA03

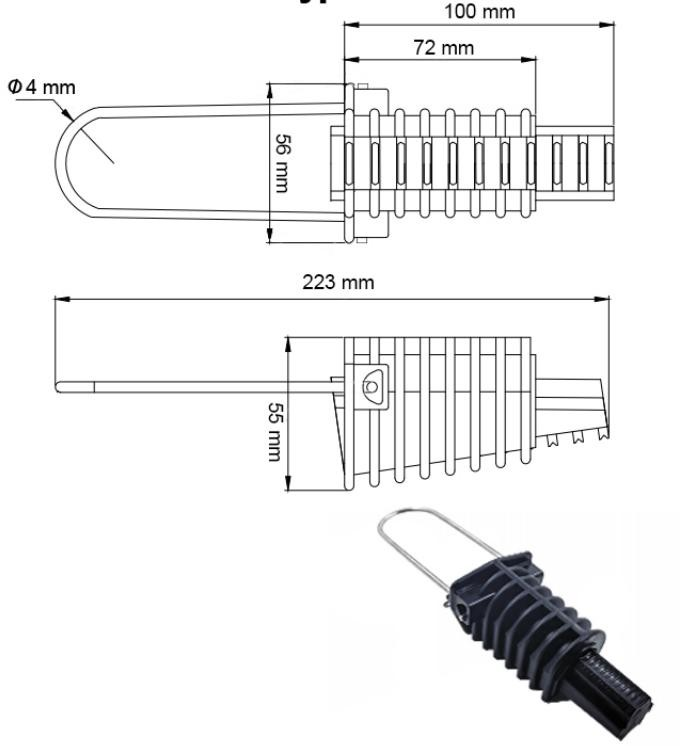

OYI-TA04

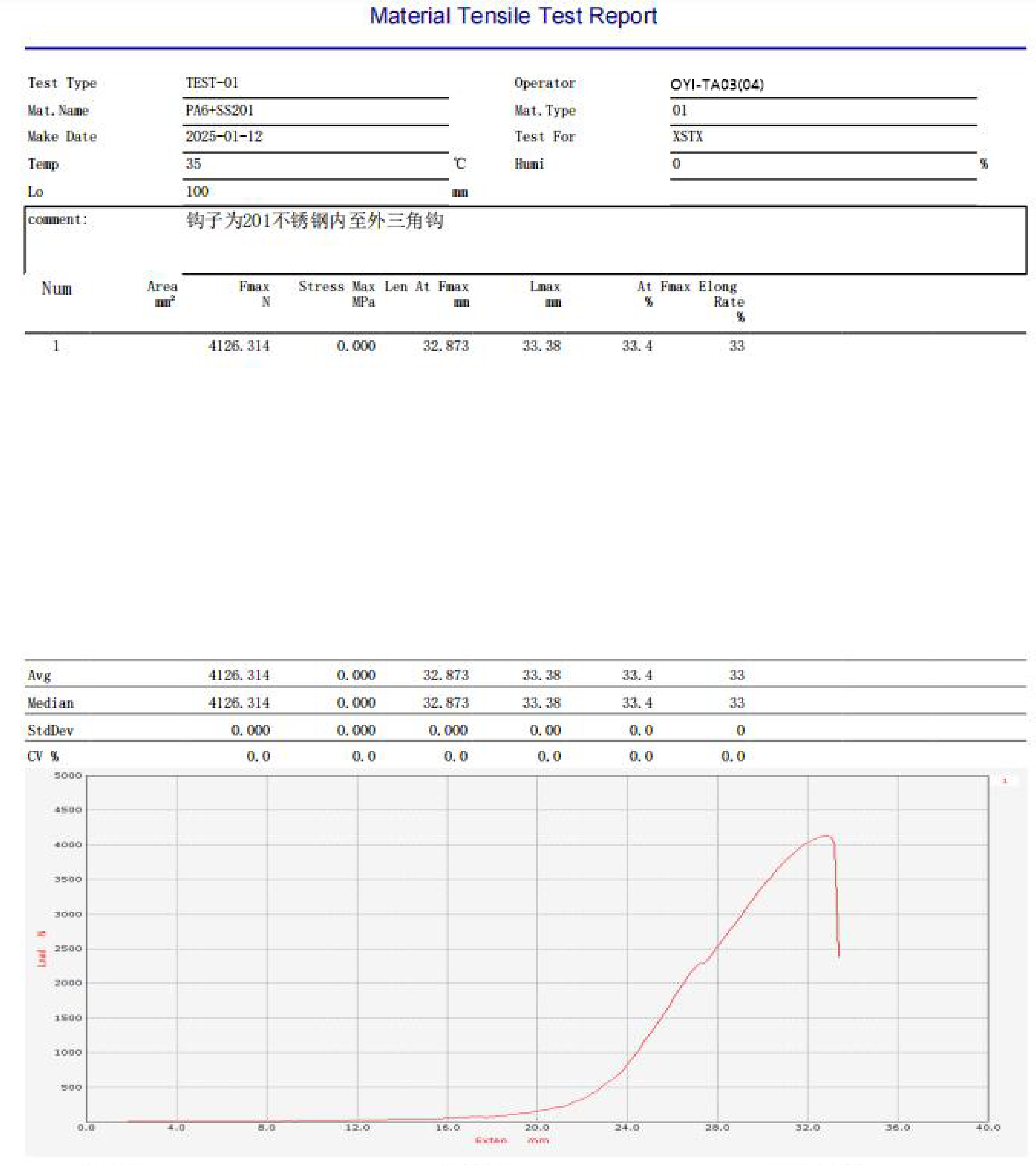

Tensile Test Report
Tensile Test Report
Packing information
1. Outside the carton Size：58*24.5*32.5CM
2. Outside the carton weight：22.8 KG
3. Every small bag：10 PCS
4. Each box number：120 PCS
Inner Packaging
Outer Carton
Pallet
-
