PATCH CORD
CAT6 UTP 26AWG/7*0.16MM
PATCH CORD
Product Features
1.Complies with Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC 11801 Standard.
2.Supports transmission of digital and analogue voice, data and video signal.
3.Products adopt PVC jacket.
4.With RJ45 connector in both sides.
5.Rated Temperature: -20° to +70°.
6.The normal service life exceeds 10 years.
Performance
|
Cable Model |
CAT6 UTP 26AWG 1-10M Patch Cord |
|
|
Connector |
RJ45 8P8C Gold-plated Connector |
|
|
Length |
10M |
|
|

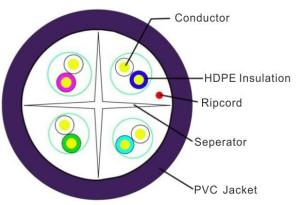

Cable Construction |
||
|
Inner conductor |
Material |
BC |
|
Diameter |
7*0.16mm ± 0.01mm (26AWG) |
|
|
Insulation(Dielectric) |
Material |
HDPE |
|
Thickness |
≥ 0.18mm |
|
|
Diameter |
0.83± 0.02mm |
|
|
Rip-cord |
Material |
Nylon |
|
Outer Jacket |
Material |
PVC |
|
Nominal O.D |
5.7mm ± 0.20mm |
|
|
Color |
GREY |
|
Applications
1. 100 Base T (IEEE 802.3)
2. Fast Ethernet (IEEE 802.3u)
3. 100vg-AnyLAN (IEEE 802.12)
4. Token Ring (IEEE 802.5)
5. TP-PMD (ANSI X3T9.5)
6. 100 Mbps CDDI
Product Pictures
Packaging Information
1. One piece per bag.
2. Any length per piece is available as request.
Inner Box
Outer Carton
-
