OYI M Type Fast Connector
Optic Fiber Fast Connector
OYI M Type Fast Connector
Product Features
1.Low Insertion Loss and High Stability.
2.Complete set of matching accessories.
3.Split assembly structure.
4.No dedicated assembly tools required.
5.No need for polishing or adhesive the ceramic ferrule with embedded fiber stub is pre-polished.
6.Precision mechanical alignment ensures low insertion loss.
7.Pre-installed, on-site assembly without end face grinding or consideration.
Technical Specifications
|
Items |
OYI M Type |
|
Ferrule Concentricity |
<1.0 |
|
Applicable For |
900um tight buffered fiber |
|
Fiber Mode |
Single mode or Multi mode |
|
Operation Time |
About 10s (no fiber cut) |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
≤-50dB for UPC, ≤-55dB for APC |
|
Repeatable Loss Variation |
100 mating cycles, insertion loss variation <0.1d |
|
Operating Temperature |
-40~+70℃ |
|
Storage Temperature |
-45~+85℃ |
|
Normal Life |
30 years |

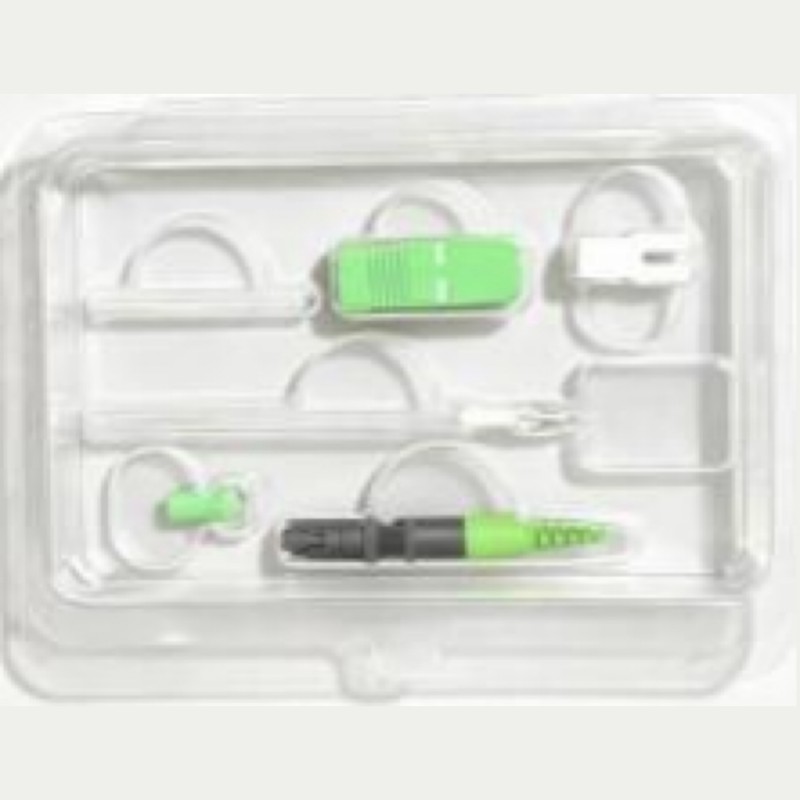

Product Pictures
1. FTTx solution and outdoor fiber terminal end.
2. Fiber optic distribution frame, patch panel, ONU.
3. In the box, cabinet, such as wiring into the box.
4. Maintenance or emergency restoration of fiber network.
5. The construction of the fiber end user access and maintenance.
6. Optical fiber access for mobile base stations.
7. Applicable to connection with field mountable indoor cable, pigtail, patch cord transformation of patch cord in.
Product Pictures

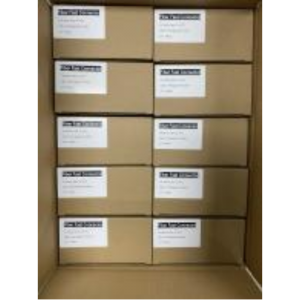

Packaging Information
Inner Box
Outer Carton
1.Quantity: 400pcs/Outer Carton.
2.Carton Size: 45*39*33cm.
3.N. Weight: 6.8kg/Outer Carton.
4.G. Weight: 6.9kg/Outer Carton.
5.OEM service available for mass quantity, can print logo on cartons.
-
