OYI-FOSC-D108H-B PLC Type
Fiber Optic Splice Closure Heat Shrink Type Dome Closure
OYI-FOSC-D108H-B PLC Type
Product Features
1. High-quality PP+ABS materials are optional, which can ensure harsh conditions such as vibration and impact.
2. Structural parts are made of high-quality stainless steel, providing high strength and corrosion resistance, making them suitable for various environments.
3. The structure is strong and reasonable, with a heat shrinkable sealing structure .
4. It is well water and dust-proof, with a unique grounding device to ensure sealing performance and convenient installation.The protection grade reaches IP68.
5. The splice closure has a wide application range, with good sealing performance and easy installation. It is produced with high-strength engineering plastic housing that is anti-aging, corrosion-resistant, high-temperature resistant, and has high mechanical strength.
6. The box has multiple reuse and expansion functions, allowing it to accommodate various core cables.

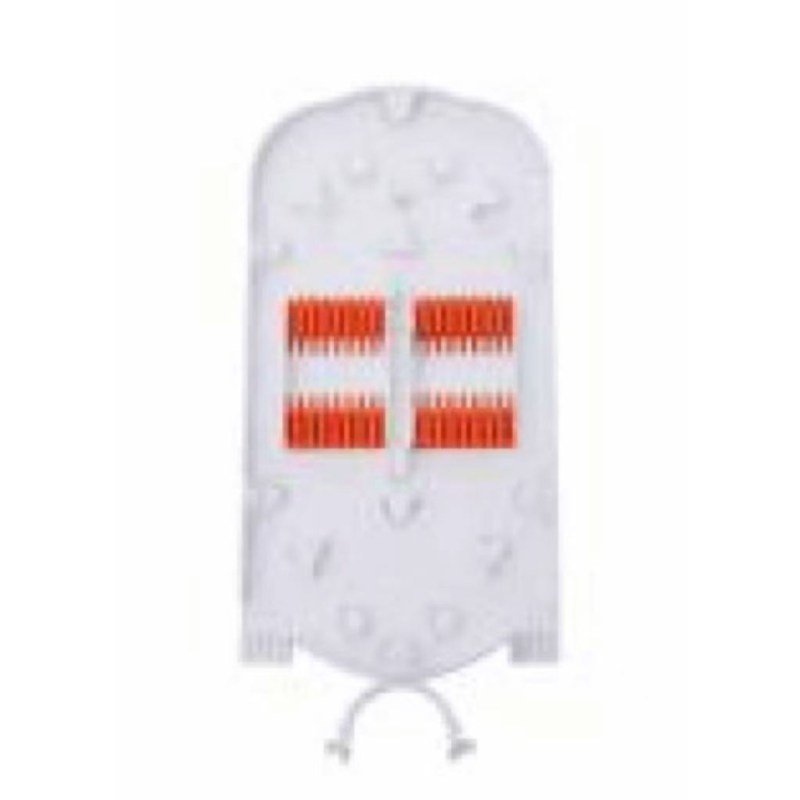

7. The splice trays inside the closure are turn-able like booklets and have adequate curvature radius and space for winding optical fiber, ensuring a curvature radius of 40mm for optical winding.
8. Each optical cable and fiber can be operated individually.
9. Sealed silicone rubber and sealing clay are used for reliable sealing and convenient operation during the opening of the pressure seal.
10. The closure is of small volume, big capacity, and convenient maintenance. The elastic rubber seal rings inside the closure have good sealing and sweat-proof performance. The casing can be opened
repeatedly without any air leakage. No special tools are required. The operation is easy and simple. An air valve is provided for the closure and is used to check the sealing performance.
11. Designed for FTTH with adapter if needed.
Technical Specifications
|
Item No. |
OYI-FOSC-D108H-B Type |
|
Size (mm) |
Φ220*470 |
|
Weight (kg) |
2.5 |
|
Cable Diameter (mm) |
Φ7~Φ21 |
|

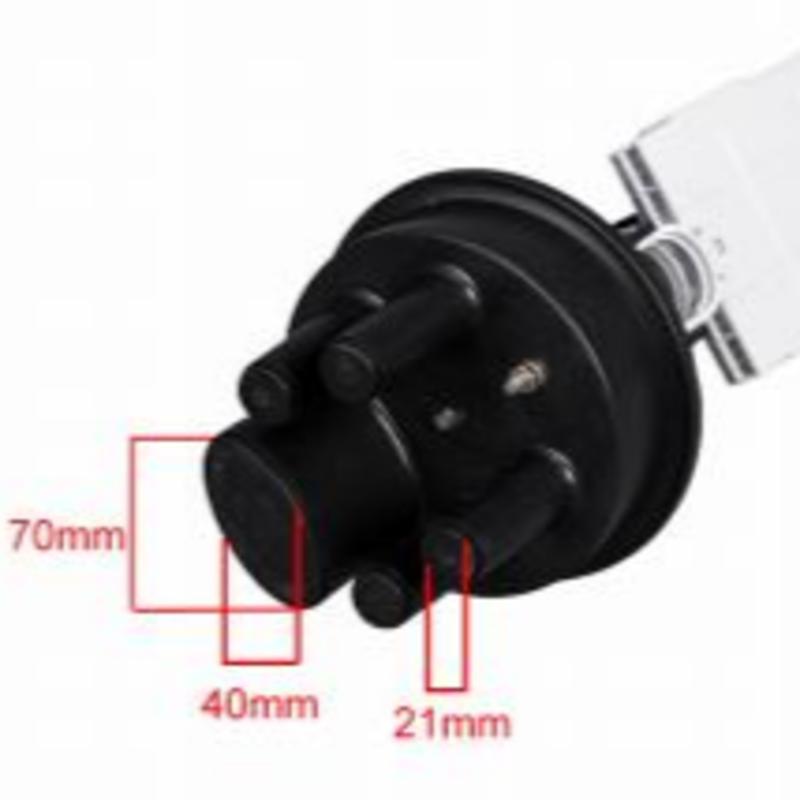

Cable Ports |
1 in (40*70mm), 4 out (21mm) |
|
Max Capacity Of Adapter |
36PCS SC DX (36PCS LC DX）Adapters |
|
Max Capacity Of Splice |
24 |
|
Max Capacity Of Splice Tray |
3 |
|
Cable Entry Sealing |
Heat-Shrinkable Sealing |
|
Life Span |
More Than 25 Years |
Applications
1.Telecommunications, railway, fiber repair, CATV, CCTV, LAN, FTTX.
2.Using communication cable lines overhead, underground, direct-buried, and so on.

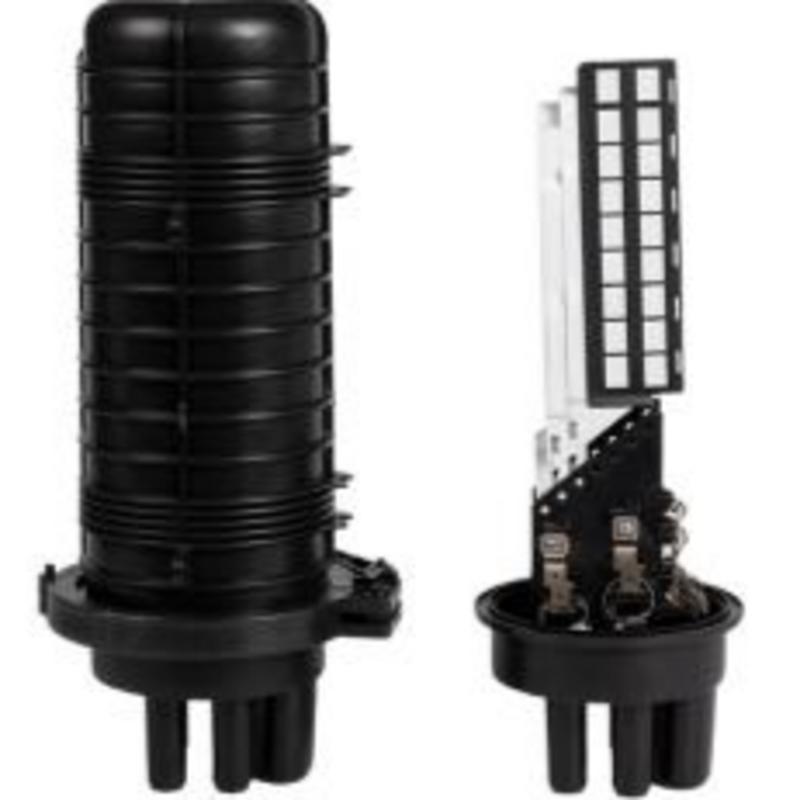

Product Pictures
Standard Accessories
Tag paper: 1pc
Sand paper: 1pc
Spanner: 1pc
Sealing rubber strip: 1pc
Insulating tape: 1pc
Cleaning tissue: 1pc
Cable tie:3mm*10mm: 12pcs
Fiber protective tube: 3pcs
Heat-shrink tubing：1bag
Heat-shrink sleeve: 1.0mm*3mm*60mm 12-144pcs

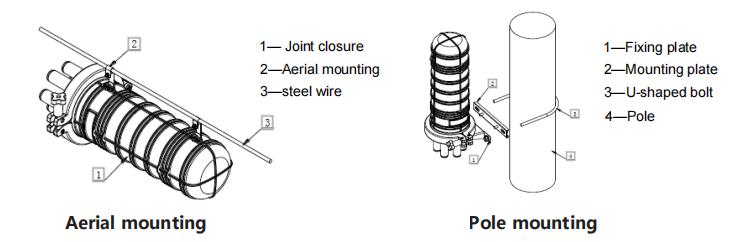

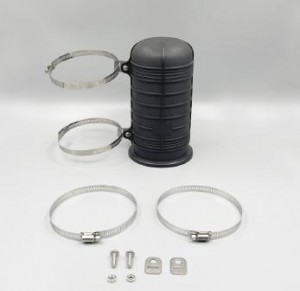

Optional Accessories
Pole mounting（A）
Pole mounting（B）
Pole mounting（C）
Wall mounting
Aerial mounting
Packaging Information
1.Quantity: 6pcs/Outer box.
2.Carton Size: 60*47*50cm.
3.N.Weight: 17kg/Outer Carton.
4.G.Weight: 18kg/Outer Carton.
5.OEM service available for mass quantity, can print logo on cartons.
Inner Box
Outer Carton
-
