OYI-FAT F24C

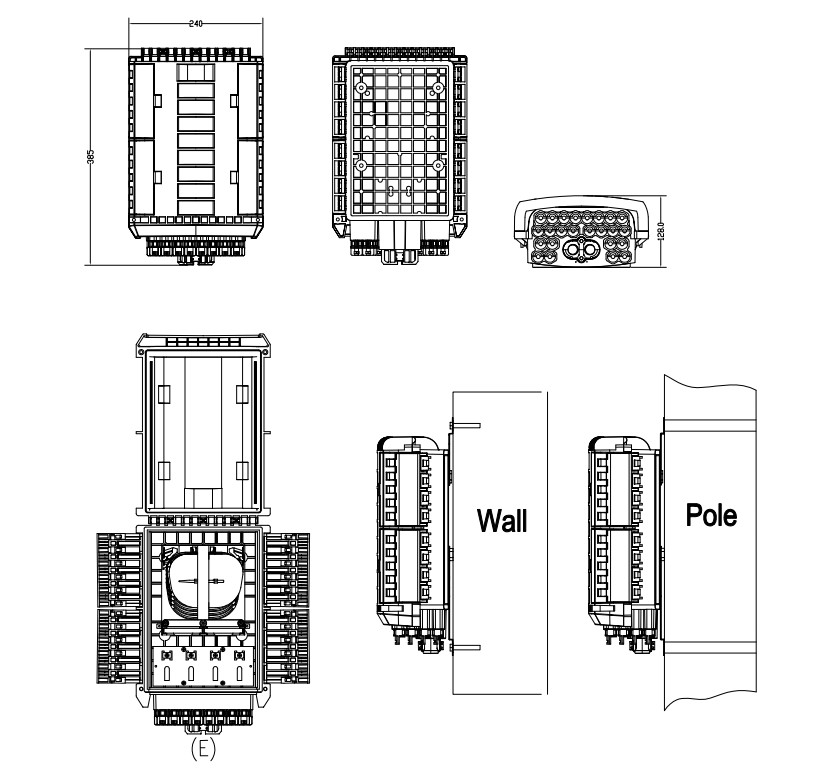

Fiber Optic Distribution Box 24 Core
OYI-FAT F24C
Product Features
1.Total enclosed structure.
2.Material: PP, wet-proof、water-proof、dust proof、anti-aging, protection level up to IP68.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor. installation, easy maintenance.
5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Box can be installed by the way of wall-mounted or poled mounted, suitable for both indoor and outdoor uses.
Configuration
|
Material |
Size |
Max Capacity |
Nos of PLC |
Nos of Adaptor |
Weight |
Ports |
|
Strengthen Polymer Plastic |
ABC(mm) 385240128 |
Splice 96 Fibers (4trays,24 fiber/tray) |
PLC Splitter 2 pcs of 1x8 1 pcs of 1×16 |
24 pcs of SC (max) |
3.8kg |
2 in 24 out |

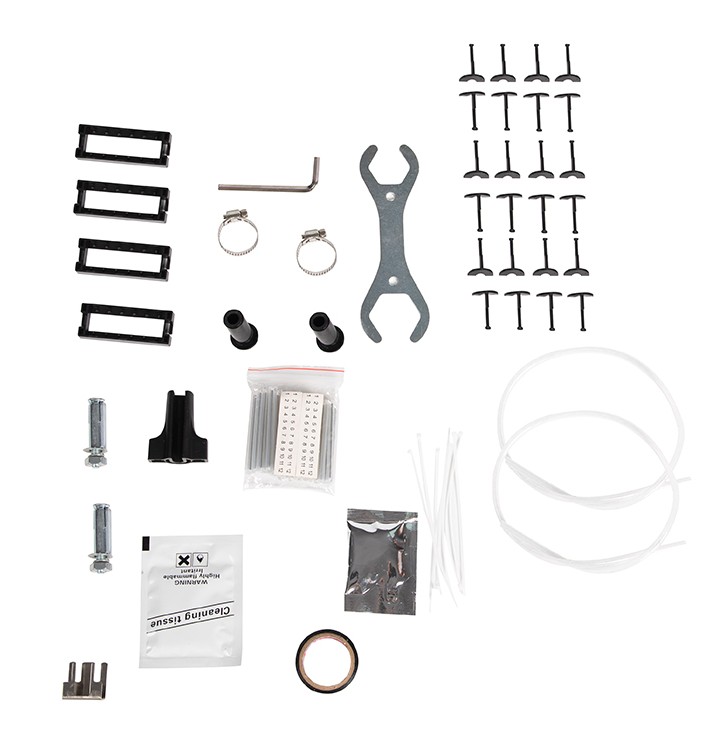

Standard Accessories
● Cleaning kit: 1pcs
● Metal spanner: 2pcs
● Mastic sealant: 1pcs
● Insulating tape: 1pcs
● Metal rinq :9pcs
● Plastic rinq: 2pcs
● Plastic pluq: 29pcs
● Fiber protective tube: 2pcs
● Expansion screw: 2pcs
● Cable tie:3mm*10mm 10pcs
● Heat-shrink sleeve:1.2mm*60mm pcs
Installation instruction
Packing List
|
PCS/CARTON |
Gross Weight（Kg） |
Net Weight，Kg |
Carton Size（cm） |
Cbm, m³ |
|
4 |
16 |
15 |
50*42*31 |
0.065 |
-
OYI I Type Fast Connector
SC field assembled melting free physical connector is a kind of quick connector for physical connection. It uses special optical silicone grease filling to replace the easy-to-lose matching paste. It is used for quick physical connection (not matching paste connection) of small equipment. It is matched with a group of optical fiber standard tools. It is simple and accurate to complete the standard end of optical fiber and reaching the physical stable connection of optical fiber. The assembly steps are simple and low skills required. the connection success rate of our connector is nearly 100%, and the service life is more than 20 years.
-
OYI-ATB04A Desktop Box
OYI-ATB04A 4-port desktop box is developed and produced by the company itself. The product’s performance meets the requirements of industry standards YD/T2150-2010. It is suitable for installing multiple types of modules and can be applied to the work area wiring subsystem to achieve dual-core fiber access and port output. It provides fiber fixing, stripping, splicing, and protection devices, and allows for a small amount of redundant fiber inventory, making it suitable for FTTD (fiber to the desktop) system applications. The box is made of high-quality ABS plastic through injection molding, making it anti-collision, flame retardant, and highly impact-resistant. It has good sealing and anti-aging properties, protecting the cable exit and serving as a screen. It can be installed on the wall.
-
8 Cores Type OYI-FAT08E Terminal Box
The 8-core OYI-FAT08E optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use.
The OYI-FAT08E optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. It can accommodate 8 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 8 cores capacity specifications to meet the expansion needs of the box.
-
OYI-FATC 8A Terminal Box
The 8-core OYI-FATC 8A optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use.
The OYI-FATC 8A optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 4 cable holes under the box that can accommodate 4 outdoor optical cables for direct or different junctions,and it can also accommodate 8 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 48 cores capacity specifications to accommodate the box’s expansion needs.
-
GPON OLT Series Datasheet
GPON OLT 4/8PON is highly integrated, medium-capacity GPON OLT for operators, ISPS, enterprises and park-applications. The product follows the ITU-T G.984/G.988 technical standard，The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators’ FTTH access, VPN, government and enterprise park access, campus network access, ETC.
GPON OLT 4/8PON is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators. -
Armoured Patchcord
Oyi armoured patch cord provides flexible interconnection to active equipment, passive optical devices and cross connects. These patch cords are manufactured so as to withstand side pressure and repeated bending and are used in external applications in customer premises, central offices and in harsh environment. Armoured patch cords are constructed with a stainless steel tube over a standard patch cord with an outer jacket. The flexible metal tube limits the bending radius, preventing the optical fibre from breaking. This ensures a safe and durable optical fibre network system.
According to the transmission medium, it divides to Single Mode and Multi Mode Fiber Optic Pigtail; According to the connector structure type, it divides FC, SC, ST, MU, MTRJ, D4, E2000, LC etc.; According to the polished ceramic end-face, it divides to PC, UPC and APC.
Oyi can provide all kinds of optic fiber patchcord products; The transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.
If you're looking for a reliable, high-speed fibre optic cable solution, look no further than OYI. Contact us now to see how we can help you stay connected and take your business to the next level.
