OYI-ODF-SNR-Series Type

Optic Fiber Terminal/Distribution Panel

OYI-ODF-SNR-Series Type

The OYI-ODF-SNR-Series type optical fiber cable terminal panel is used for cable terminal connection and can also be used as a distribution box. It has a 19″ standard structure and is slidable type fiber optic patch panel. It allows for flexible pulling and is convenient to operate. It is suitable for SC, LC, ST, FC, E2000 adapters, and more.

The rack mounted optical cable terminal box is a device that terminates between the optical cables and the optical communication equipment. It has the functions of splicing, termination, storing, and patching of optical cables. The SNR-series sliding and without rail enclosure allows for easy access to fiber management and splicing. It is a versatile solution available in multiple sizes (1U/2U/3U/4U) and styles for building backbones, data centers, and enterprise applications.


Product Detail

FAQ

Product Tags

Product Features

1. 19" standard size, easy to install.
2. Color: Grey, White or Black.
3. Material: Cold-rolled steel, electrostatic power painting.
4. Install with sliding type without rail, easy to take out.
5. Lightweight, strong strength, good anti-shock and dustproof properties.
6. Well-managed cables, allowing for easy distinction.
7. Roomy space ensures proper fiber bending ratio.
8. All types of pigtails available for installation.
9. Use of cold-rolled steel sheet with strong adhesive force, artistic design, and durability.
10. Cable entrances are sealed with oil-resistant NBR to increase flexibility. Users can choose to pierce the entrance and exit.
11. 4pcs Ф22 mm cable entry ports (with two kinds of design), if load M22 cable gland for 7~13mm cable entry;
12. 20pcs Ф4.3mm round cable port at rear side.
13. Comprehensive accessory kit for cable entry and fiber management.
14. Patch cord bend radius guides minimize macro bending.
15. Fully assembled (loaded) or empty panel.
16. Different adapter interfaces including ST, SC, FC, LC, E2000.
17. 1u Panel:Splice capability is up to a maximum of 48 fibers with splice trays loaded.
18. Fully compliant with YD/T925—1997 quality management system.

Applications

1. Data communications networks.
2. Storage area network.
3. Fiber channel.
4. FTTx system wide area network.
5. Test instruments.
6. CATV networks.
7. Widely used in FTTH access network.

Operations

1. Peel the cable, remove the outer and inner housing, as well as any loose tube, and wash off the filling gel, leaving 1.1 to 1.6m of fiber and 20 to 40mm of steel core.
2. Attach the cable-pressing card to the cable, as well as the cable reinforce steel core.
3. Guide the fiber into the splicing and connecting tray, secure the heat-shrink tube and splicing tube to one of the connecting fibers. After splicing and connecting the fiber, move the heat-shrink tube and splicing tube and secure the stainless (or quartz) reinforce core member, ensuring that the connecting point is in the middle of the housing pipe. Heat the pipe to fuse the two together. Place the protected joint into the fiber-splicing tray. (One tray can accommodate 12-24 cores).
4. Lay the remaining fiber evenly in the splicing and connecting tray, and secure the winding fiber with nylon ties. Use the trays from the bottom up. Once all the fibers have been connected, cover the top layer and secure it.
5. Position it and use the earth wire according to the project plan.
6. Packing List:
(1) Terminal case main body: 1 piece
(2) Polishing sand paper: 1 piece
(3) Splicing and connecting mark: 1 piece
(4) Heat shrinkable sleeve: 2 to 144 pieces, tie: 4 to 24 pieces

Standard Accessories Pictures:

Pictures5

                            Cable ring                                   Cable tie                        Heat protection shrinkable sleeves

Optional Accessory Pictures

asdasd

Specifications

Mode Type

Size (mm)

Max Capacity

Outer Carton Size

(mm)

Gross Weight

(kg)

Quantity In Carton Pcs

OYI-ODF-SNR

482x245x44

24(LC 48core)

540*330*285

17

5

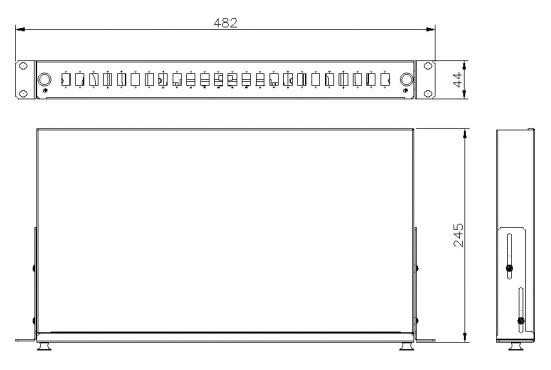

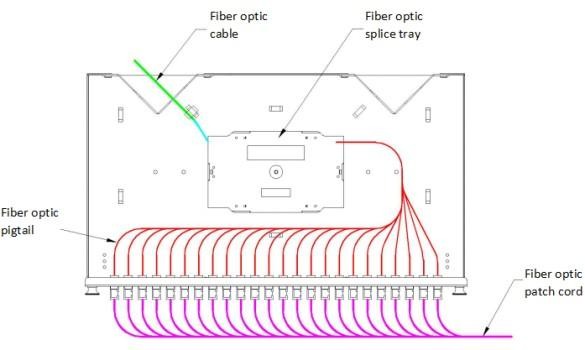

Dimension Drawings

Pictures6
Pictures7

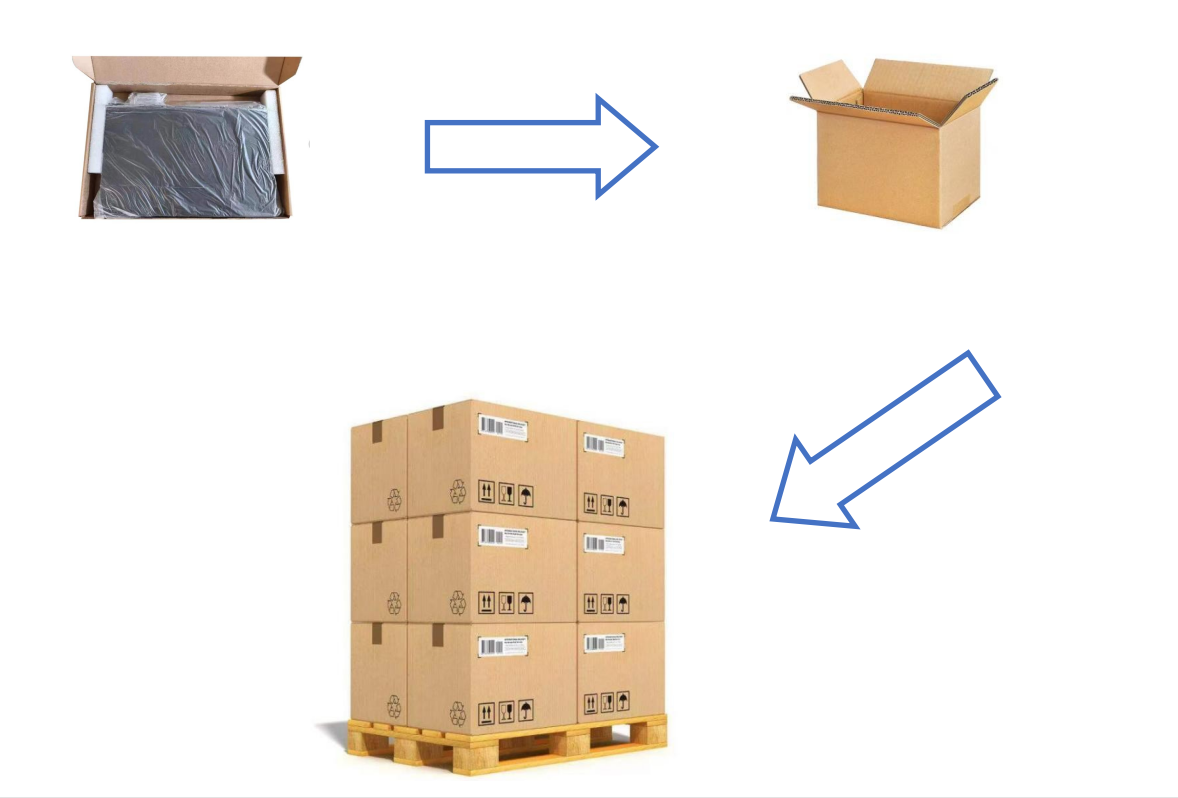

Packaging Information

asda
