Optic Fiber Terminal/Distribution Box 12 Cores Type OYI-FTB-12A Terminal Box
Optic Fiber Terminal/Distribution Box 12 Cores Type
OYI-FTB-12A Terminal Box
Product Features
1. User familiar industry interface, using high impact plastic ABS.
2. Wall and pole mountable.
3. No need screws, it is easy to close and open.
4. The high strength plastic, anti ultraviolet radiation and ultraviolet radiation resistant, radiation to rain.
Application
1. Widely used in FTTH access network.
2. Telecommunication Networks.
3. CATV Networks Data communications Networks.
4. Local Area Networks.
Product Parameter
|
Dimension( L×W×H ) |
197mm×156mm×77mm |
|
Name |
Fiber termination box |
|
Material |
ABS+PC |
|
IP Grade |
IP65 |
|
Max ratio |
1:12 |
|
Max capacity(F) |
12 |
|
Adaptor |
SC Simplex or LC Duplex |
|
Tensile strength |
>50N |
|
Colour |
Black and White |
|
Environment |
Accessories: |
|
1. Tempreture: -40 ℃—60℃ |
1. 2 hoops (outdoor air frame) Optional |
|
2. Ambient Humidity : 95% above 40 °C |
2.wall mount kit 1 set |
|
3. Air pressure: 62kPa—105kPa |
3.two lock keys used waterproof lock |

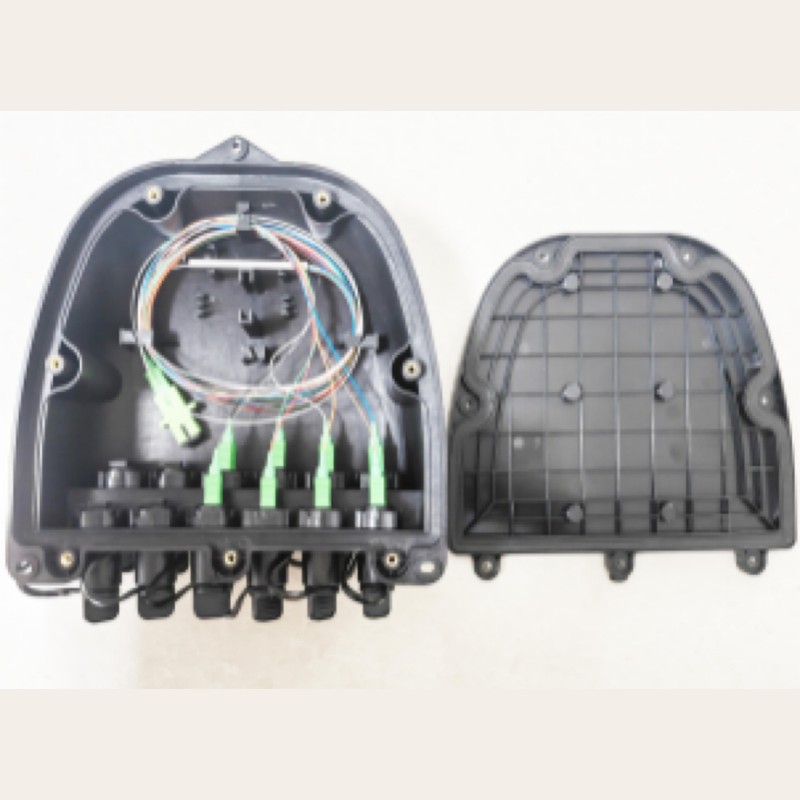

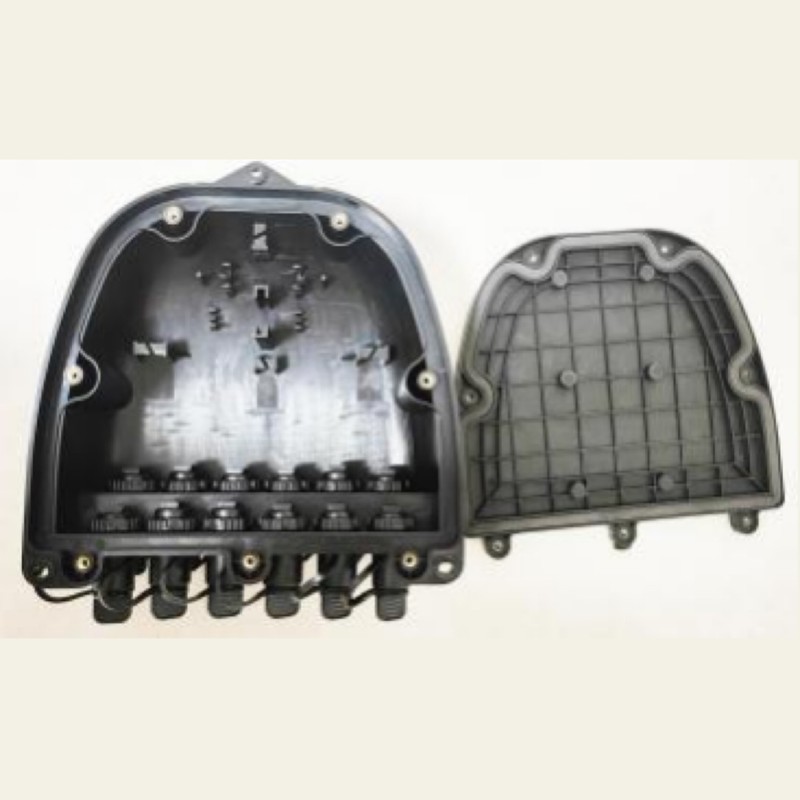

Product Pictures

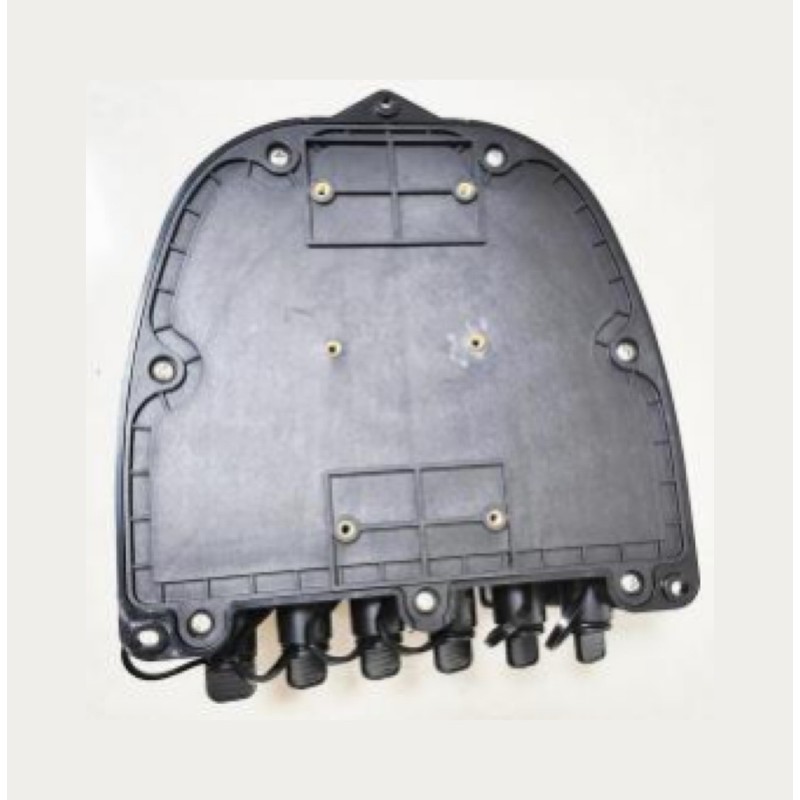

Product Pictures

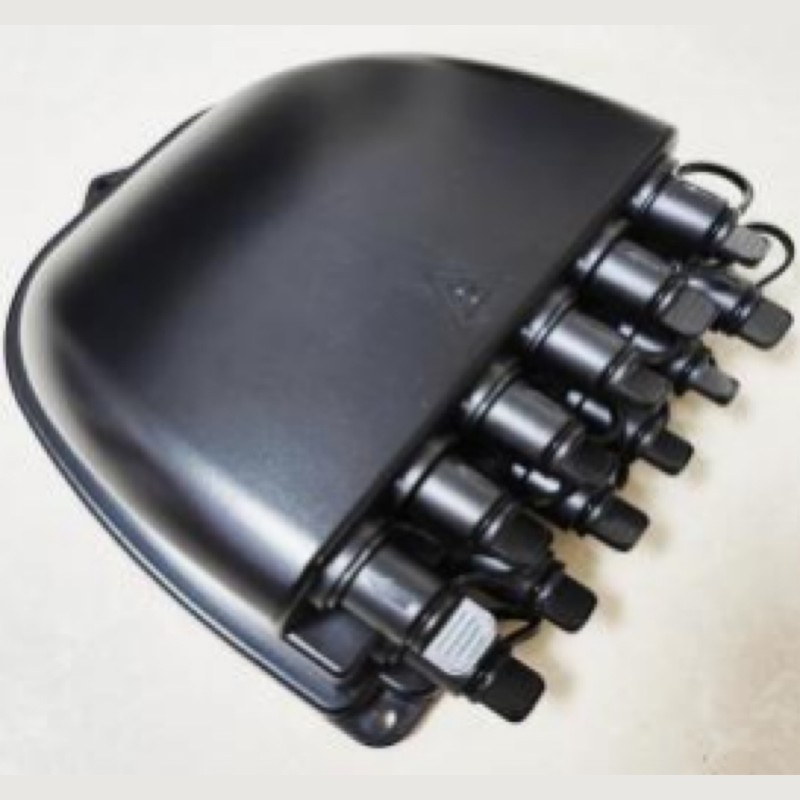

Product Pictures
Packaging Information
Inner Box
Outer Carton
-
