LC Quad Type
Optic Fiber Adapter
LC Quad Type
Product Features
1. Simplex and duplex versions are available.
2. Low insertion loss and return loss.
3. Excellent changeability and directivity.
4. Ferrule end surface is pre-domed.
5. Precision anti-rotation key and corrosion-resistant body.
6. Ceramic sleeves.
7. Professional manufacturer, 100% tested.
8. Accurate mounting dimensions.
9. ITU standard.
10. Fully compliant with ISO 9001:2008 quality management system.
Applications
1. Telecommunication system.
2. Optical communication networks.
3. CATV, FTTH, LAN.
4. Fiber optic sensors.
5. Optical transmission system.
6. Test equipment.
7. Industrial, Mechanical, and Military.
8. Advanced production and testing equipment.
9. Fiber distribution frame, mounts in fiber optic wall mount and mount cabinets.
Technical Specifications
| Parameters | SM | MM | ||
| PC | UPC | APC | UPC | |
| Operation Wavelength | 1310&1550nm | 850nm&1300nm | ||
| Insertion Loss (dB) Max | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 |
| Return Loss (dB) Min | ≥45 | ≥50 | ≥65 | ≥45 |
| Repeatability Loss (dB) | ≤0.2 | |||
| Exchangeability Loss (dB) | ≤0.2 | |||
| Repeat Plug-Pull Times | ＞1000 | |||
| Operation Temperature (℃) | -20~85 | |||
| Storage Temperature (℃) | -40~85 | |||

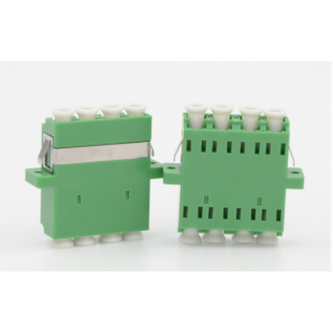

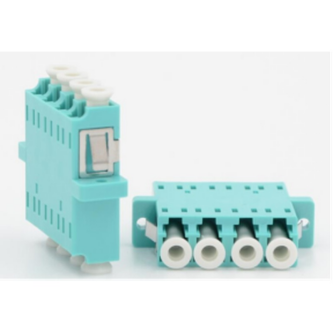

Product Pictures
Packaging Information
LC/UPC as a reference.
1. 50 pcs in 1 plastic box.
2. 5000 specific adapter in carton box.
3. Outside carton box size: 45*34*41 cm, weight: 16.3kg.
4. OEM service available for mass quantity, can print logo on cartons.

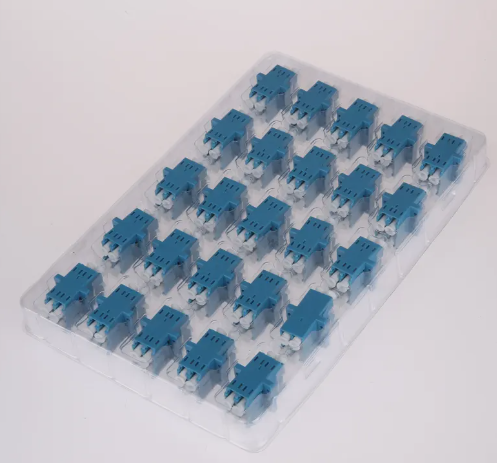

Inner Packaging
Outer Carton
-
