Fiber Plastic Cable Storage F Type
Fiber Plastic Cable Storage F Type
Fiber Plastic Cable Storage F Type
Specifications
|
PARAMETER |
OYI-S020 |
|
CHANNEL WIDE x DEEP(mm) |
40x40 |
|
OUT SIDE WIDE x LONG(mm) |
440*640 |
|
INSIDE ROUND(mm) |
400 |
|
MINIMUM BEND DIAMETER (mm) |
20 |
|
TEMPERATURE °C |
-30~+60 |
|
Weight(g) |
1100 |
|
Storage cable length |
12m |

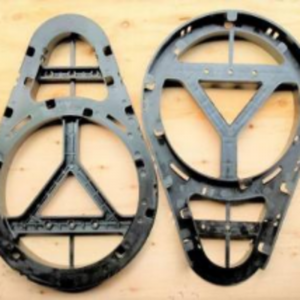

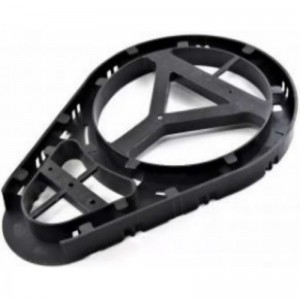

Product Pictures

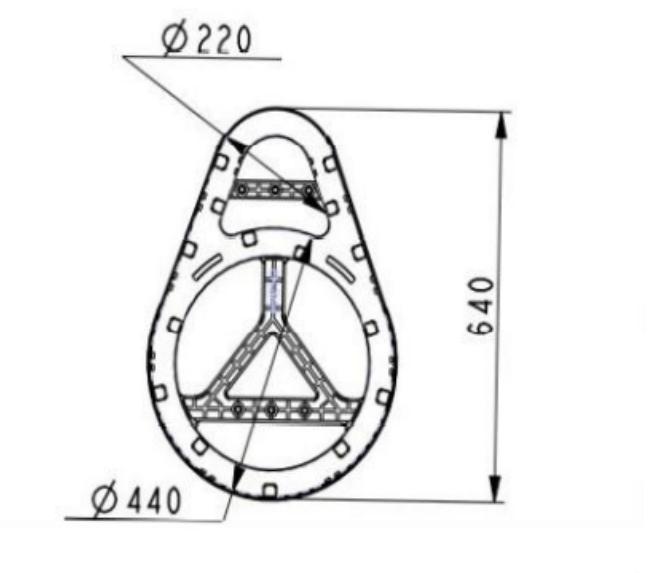

Drawings
Packaging Information
Carton box size: 46x46x112cm , weight: 20kg , 20pcs Packing in Pallet.
Inner Box
Outer Carton
-
