OYI-NOO1 Floor-Mounted Cabinet
19”4U-18U Racks Cabinets
OYI-NOO1 Floor-Mounted Cabinet
Product Features
1. Frame: Welded frame, stable structure with precise craftsmanship.
2. Double Section, compatible with 19" standard equipment.
3. Front Door: High strength toughened glass front door with over 180 turning degree.
4. Side Panel: Removable side panel, easy to install and maintain (lock optional).
5. Cable Entry on the top cover and bottom panel with knock-out plate.
6. L-Shaped Mounting Profile, easy to adjustable on the mounting rail.
7. Fan cutout on the top cover, easy to install fan.
8. Wall mounting or floor standing installation.
9. Material: SPCC Cold Rolled Steel.
10. Color: Ral 7035 grey /Ral 9004 black.
Technical Specifications
1.Operating temperature: -10℃-+45℃
2.Storage temperature: -40℃ +70℃
3.Relative humidity: ≤85% (+30℃)
4.Atmospheric pressure: 70~106 KPa
5.Isolation resistance: ≥ 1000MΩ/500V(DC)
6.Durability:＞1000 times
7.Anti-voltage strength: ≥3000V(DC)/1min
Application
Other Optional Accessories
1.Fixed shelf.
2.19'' PDU.
3.Adjustable feet or castor if floor standing installation.
4.Others according to Customer's requirements.
Standard Attached Accessories
Design details
Dimension for you to choose
|
600*450 Wall-mounted Cabinet |
|||
|
Model |
Width(mm) |
Deep(mm) |
High(mm) |
|
OYI-01-4U |
600 |
450 |
240 |
|
OYI-01-6U |
600 |
450 |
330 |
|
OYI-01-9U |
600 |
450 |
465 |
|
OYI-01-12U |
600 |
450 |
600 |
|
OYI-01-15U |
600 |
450 |
735 |
|
OYI-01-18U |
600 |
450 |
870 |
|
600*600 Wall-mounted Cabinet |
|||
|
Model |
Width(mm) |
Deep(mm) |
High(mm) |
|
OYI-02-4U |
600 |
600 |
240 |
|
OYI-02-6U |
600 |
600 |
330 |
|
OYI-02-9U |
600 |
600 |
465 |
|
OYI-02-12U |
600 |
600 |
600 |
|
OYI-02-15U |
600 |
600 |
735 |
|
OYI-02-18U |
600 |
600 |
870 |

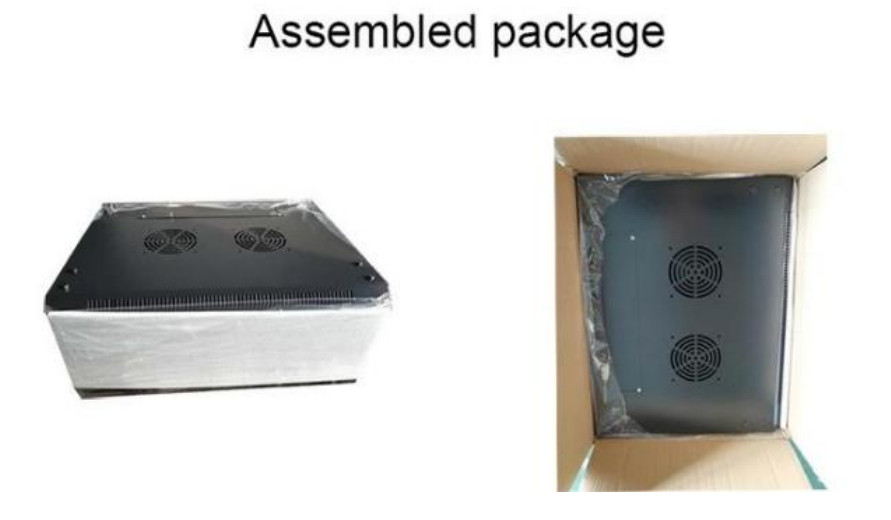

Packaging Information
|
Standard |
ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
|
Material |
SPCC quality cold rolled steel Thickness: 1.2mm Tempered glass Thickness:5mm |
|
Loading Capacity |
Static loading: 80kg(on the adjustable feet) |
|
Degree of protection |
IP20 |
|
Surface finish |
Degreasing, Pickling, Phosphating, Powder Coated |
|
Product specification |
15u |
|
Width |
500mm |
|
Depth |
450mm |
|
Color |
Ral 7035 grey /Ral 9004 black |
-
OYI-FAT16D Terminal Box
The 16-core OYI-FAT16D optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use.
-
OYI-FOSC HO7
The OYI-FOSC-02H horizontal fiber optic splice closure has two connection options: direct connection and splitting connection. It is applicable in situations such as overhead, man-well of pipeline, and embedded situations, among others. Comparing with a terminal box, the closure requires much stricter sealing requirements. Optical splice closures are used to distribute, splice, and store outdoor optical cables that enter and exit from the ends of the closure.
The closure has 2 entrance ports. The shell of the product is made from ABS+PP material. These closures provide excellent protection for fiber optic joints from outdoor environments such as UV, water, and weather, with leak-proof sealing and IP68 protection.
-
OYI-FOSC-D103M
The OYI-FOSC-D103M dome fiber optic splice closure is used in aerial, wall-mounting, and underground applications for the straight-through and branching splice of the fiber cable. Dome splicing closures are excellent protection of fiber optic joints from outdoor environments such as UV, water, and weather, with leak-proof sealing and IP68 protection.
The closure has 6 entrance ports on the end (4 round ports and 2 oval port). The shell of the product is made from ABS/PC+ABS material. The shell and the base are sealed by pressing the silicone rubber with the allocated clamp. The entry ports are sealed by heat-shrinkable tubes. The closures can be opened again after being sealed and reused without changing the sealing material.
The closure’s main construction includes the box, splicing, and it can be configured with adapters and optical splitters.
-
16 Cores Type OYI-FAT16B Terminal Box
The 16-core OYI-FAT16B optical terminal box performs in accordance with the industry standard requirements of YD/T2150-2010. It is mainly used in the FTTX access system terminal link. The box is made of high-strength PC, ABS plastic alloy injection molding, which provides good sealing and aging resistance. In addition, it can be hung on the wall outdoors or indoors for installation and use.
The OYI-FAT16B optical terminal box has an inner design with a single-layer structure, divided into the distribution line area, outdoor cable insertion, fiber splicing tray, and FTTH drop optical cable storage. The fiber optical lines are very clear, making it convenient to operate and maintain. There are 2 cable holes under the box that can accommodate 2 outdoor optical cables for direct or different junctions, and it can also accommodate 16 FTTH drop optical cables for end connections. The fiber splicing tray uses a flip form and can be configured with 16 cores capacity specifications to accommodate the box’s expansion needs. -
OYI-ODF-SR-Series Type
The OYI-ODF-SR-Series type optical fiber cable terminal panel is used for cable terminal connection and can also be used as a distribution box. It has a 19″ standard structure and is rack-mounted with a drawer structure design. It allows for flexible pulling and is convenient to operate. It is suitable for SC, LC, ST, FC, E2000 adapters, and more.
The rack mounted optical cable terminal box is a device that terminates between the optical cables and the optical communication equipment. It has the functions of splicing, termination, storing, and patching of optical cables. The SR-series sliding rail enclosure allows for easy access to fiber management and splicing. It is a versatile solution available in multiple sizes (1U/2U/3U/4U) and styles for building backbones, data centers, and enterprise applications.
-
drop cable
Drop Fiber Optic Cable 3.8 mm constructed one single strand of fiber with 2.4 mm loose tube, protected aramid yarn layer is for strength and physical support. Outer jacket made of HDPE materials that use in applications where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.
If you're looking for a reliable, high-speed fibre optic cable solution, look no further than OYI. Contact us now to see how we can help you stay connected and take your business to the next level.
