OYI-FOSC-D111M
Fiber Optic Splice Closure Dome type
OYI-FOSC-D111M
Product Features
1. Impact resistant PP material, black color.
2.Mechanical sealing structure, IP68.
3.Max. 12pcs OST-061 fiber optic splice tray, max. 288 fibers .
4.Can load max 18pcs SC simplex adapters，Two splitter space for PLC 1x8, 1x16.
5.6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting.
6.Working temperature -35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance.
7.Support wall mounted, pole mounted, aerial hanged, direct buried.

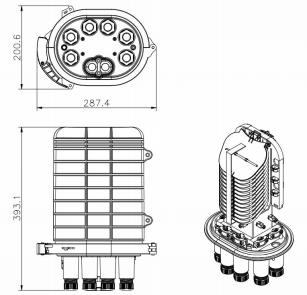

Dimension: (mm)
Instruction:
1. Input fiber optic cable
3. Cable strengthen member

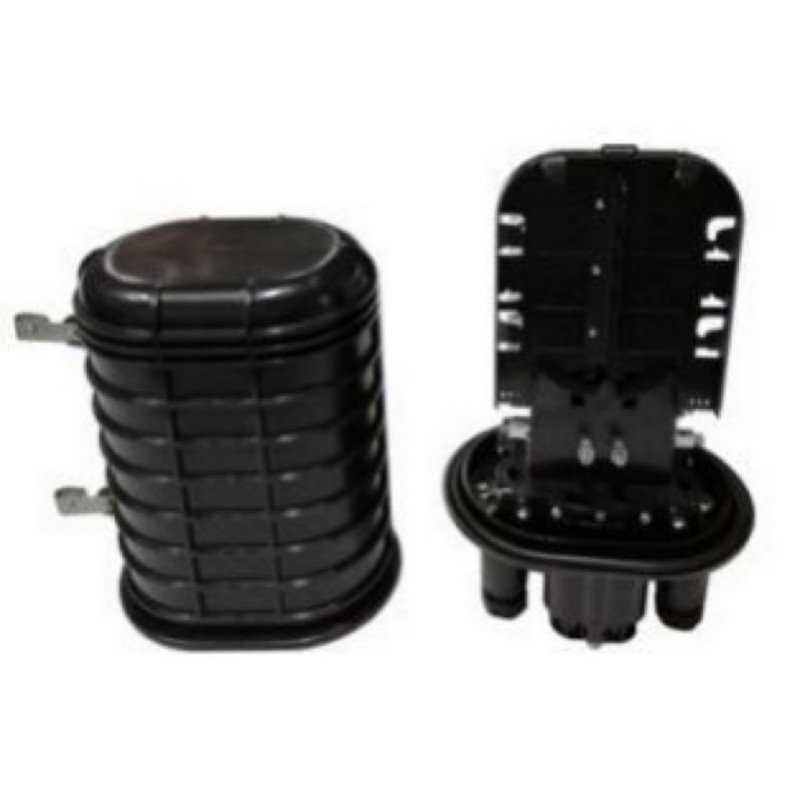

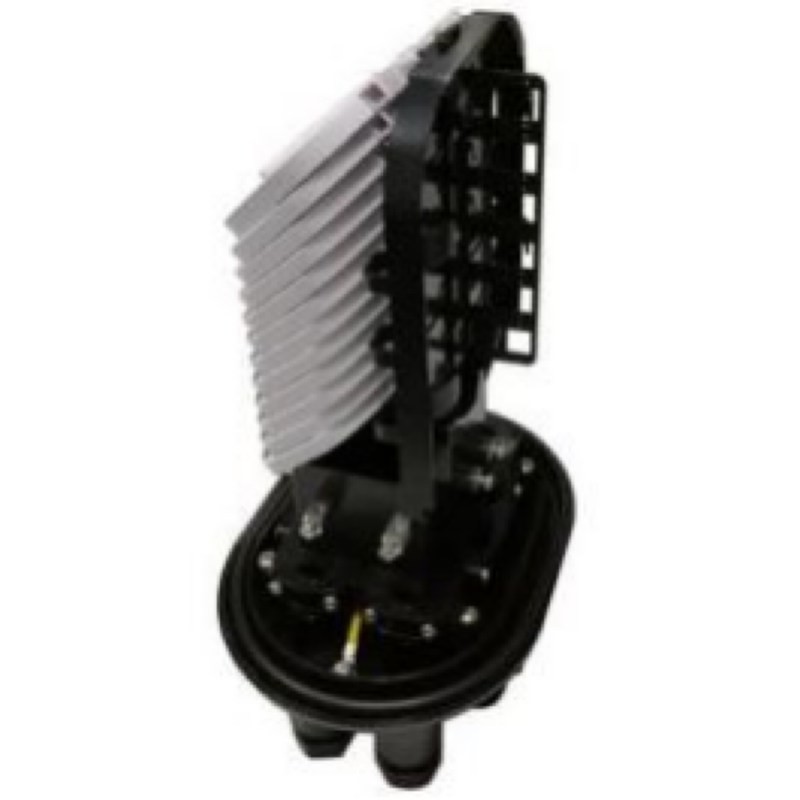

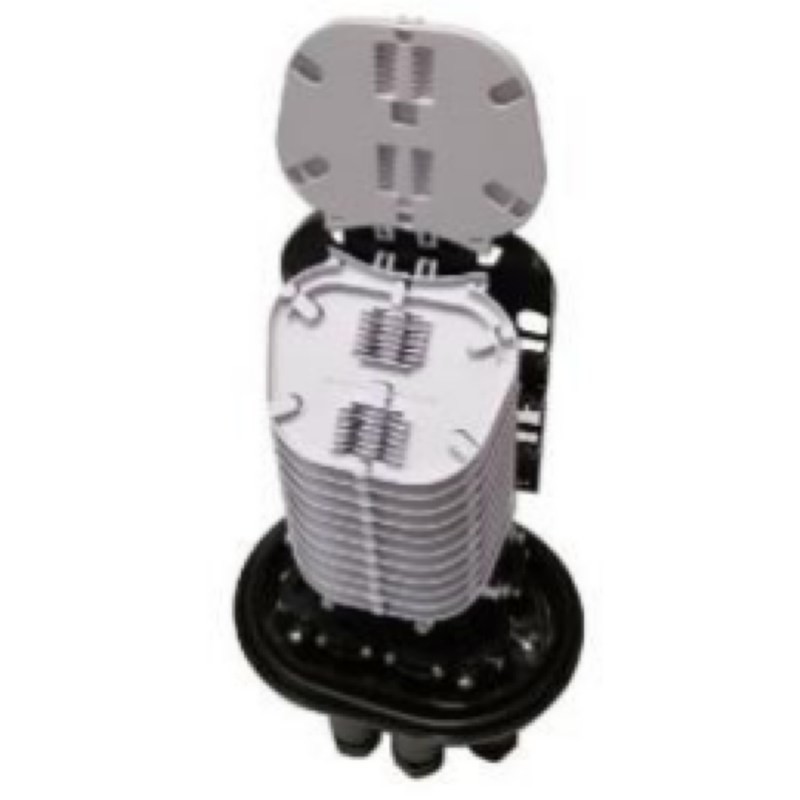

Product Pictures
Accessory list
|
Item |
Name |
Specification |
Qty |
|
1 |
Plastic tube |
Outside Ф4mm, thickness 0.6mm, plastic, white |
1 meter |
|
2 |
3mm*120mm, white |
12 pcs |
|
|
3 |
Inner hexagon spanner |
S5 black |
1 pc |
|
4 |
Heat shrinkable protection sleeve |
60*2.6*1.0mm |
As per using capacity |
Packaging Information
Inner Box
Outer Carton
-
