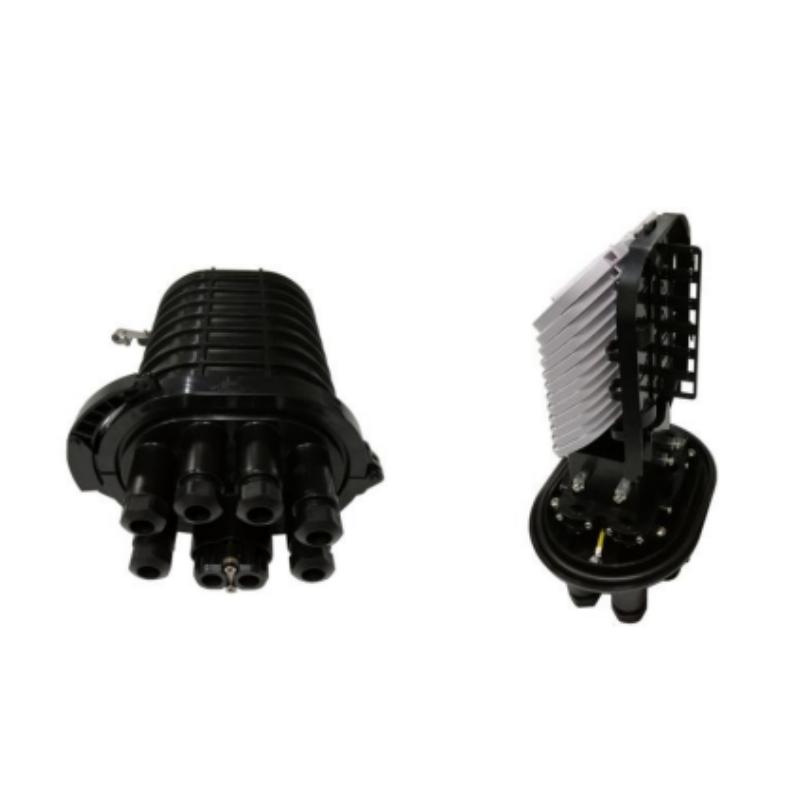

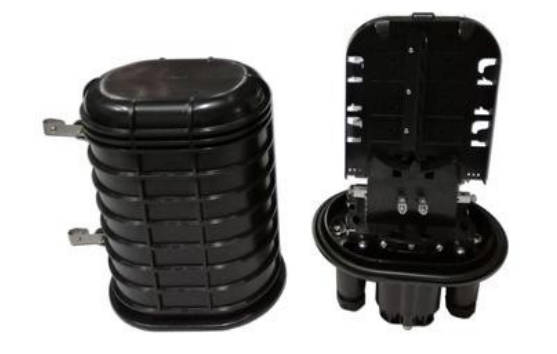

OYI-FOSC-D111
Fiber Optic Splice Closure Dome Closure
OYI-FOSC-D111
Product Features
1. Impact resistant PP material, black color.
2. Mechanical sealing structure, IP68.
3. Max. 12pcs fiber optic splice tray, A tray for 12core per tray，Max 144 fibers. B tray for 24core per tray max. 288 fibers.
4. Can load max. 18pcs SC simplex adapters.
5. Two splitter space for PLC 1x8, 1x16.
6. 6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting Working temperature -35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance.
7. Support wall mounted, pole mounted, aerial hanged, direct buried.

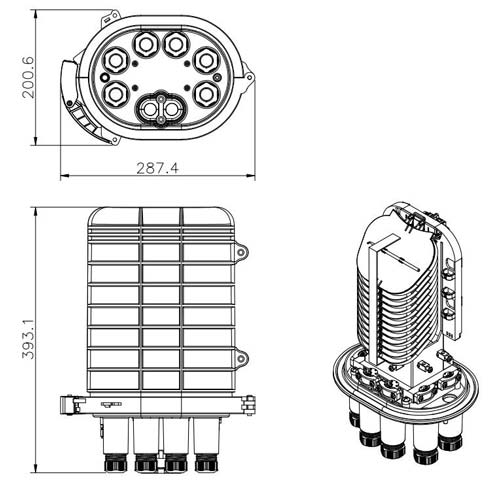

Dimension: (mm)

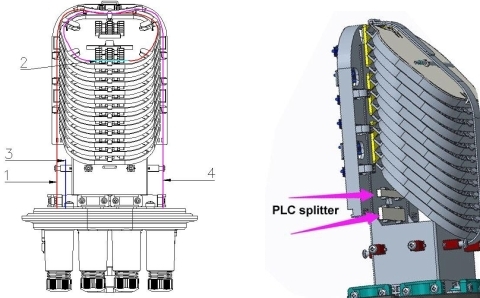

Instruction:
1. Input fiber optic cable
2. Heat shrinkable protection sleeve
3. Cable strengthen member
4. Output fiber optic cable
Accessory list:
|
Item |
Name |
Specification |
Qty |
|
1 |
Plastic tube |
Outside Ф4mm, thickness 0.6mm, plastic, white |
1 meter |
|
2 |
Cable tie |
3mm*120mm, white |
12 pcs |
|
3 |
Inner hexagon spanner |
S5 black |
1 pc |
|
4 |
Heat shrinkable protection sleeve |
60*2.6*1.0mm |
As per using capacity |
Packaging Information
4pcs per carton, each carton 61x44x45cm Images:

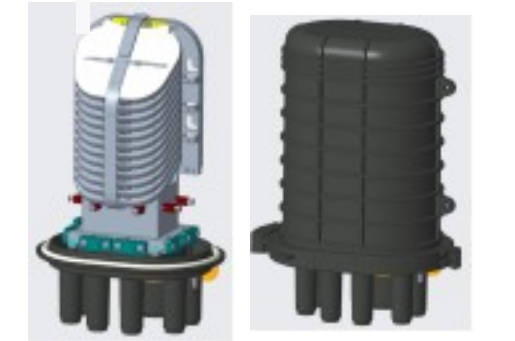

Type A Mechanical type
Type B Heat-Shrinkable
Inner Box
Outer Carton
-
