News - SC LC UPC APC: How to Pick Suitable Fiber Fast Connectors

In telecom operations and data center deployment, operational efficiency always sits at the core of project delivery. Besides stable bandwidth transmission, on-site installation speed directly shapes overall construction costs—and this is exactly where fiber fast connectors deliver massive value. Still, many field engineers and procurement staff rush into cabling projects without fully grasping the differences between SC and LC housings, or UPC versus APC end face polishing. This careless choice easily triggers excessive optical signal attenuation, unstable network signals, and expensive rework that drags down project schedules.

With nearly two decades of industry experience, the team at OYI International., Ltd. fully recognizes these common on-site pain points. Headquartered in Shenzhen, China, we are a forward-thinking fiber optic manufacturer that has delivered reliable connectivity solutions to global clients since 2006. Our in-house R&D team consists of over 20 professional technicians who focus on structural optimization and optical performance upgrades for fiber components. All our fast connectors are strictly calibrated to keep insertion loss low and return loss at qualified standards, supporting steady cooperation with 268 long-term partners spread across 143 countries worldwide. Whether you work as a field installation technician or manage bulk procurement for engineering firms, selecting matching fiber fast connectors lays the foundation for smooth network operation. Below is our practical, field-tested selection guide tailored to real engineering scenarios.

Learn Core Classification First: SC vs LC Connector Form Factors

Before comparing polishing styles, you need to confirm the connector physical size and locking structure, two core distinctions separating mainstream SC and LC fast connectors on the market.

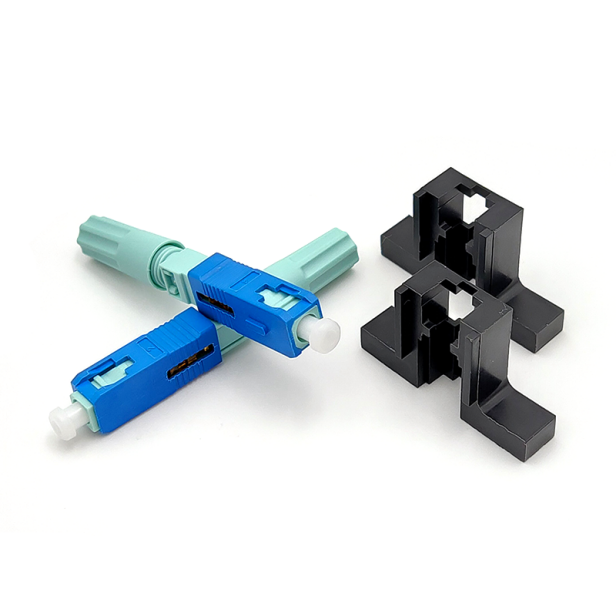

SC (Subscriber Connector)

Commonly known as the square fiber connector, the SC model adopts a simple push-pull locking design that demands minimal operating skills. It features a large 2.5mm ceramic ferrule inside the plastic shell, with solid structural resistance to squeezing and dropping. This connector stands out for outdoor and scattered construction work where compact rack space is not a priority. It has become the mainstream pick for FTTH fiber drop wiring and general data communication projects, thanks to its consistent optical stability and high mechanical plug-and-play lifespan. New installers can operate SC connectors smoothly without complicated training, drastically cutting field termination error rates.

LC (Lucent Connector)

The LC connector is a compact miniaturized alternative to SC, equipped with a small elastic latch structure similar to RJ45 Ethernet plugs. Its overall volume is about half that of an SC connector, allowing far more ports to be arranged on patch panels of the same size. This design makes LC the top choice for high-density deployment scenarios, including core data center cabinets and enterprise indoor machine rooms. For projects requiring mass interconnection of 10G, 40G and 100G high-speed fiber links, LC fast connectors balance compact layout and stable high-speed signal transmission perfectly. Its tiny elastic buckle, however, is less resistant to rough outdoor construction, making it unsuitable for exposed field wiring.

Opt for LC fast connectors if you’re building high-density data center racks and indoor concentrated wiring systems. Pick SC fast connectors for outdoor FTTH drop cable construction, community distribution box wiring, and projects with large teams of inexperienced field workers prioritizing durability and easy operation.

End Face Polishing Makes All the Difference: UPC vs APC

Most procurement and installation errors stem from mixing up UPC and APC connectors. Apart from the basic color identification (blue housing for UPC, green housing for APC), their core gap lies in ferrule end face angles, which fundamentally alters optical reflection performance and decides which network systems they fit.

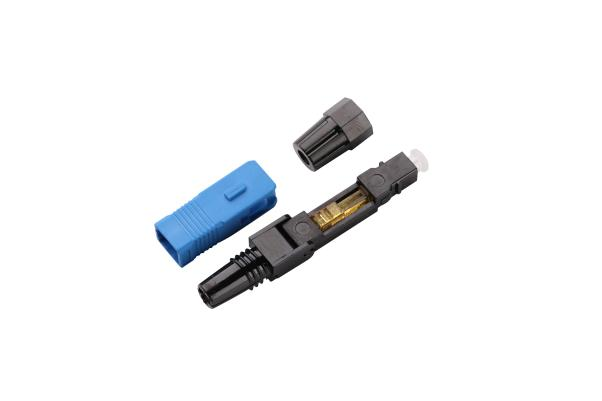

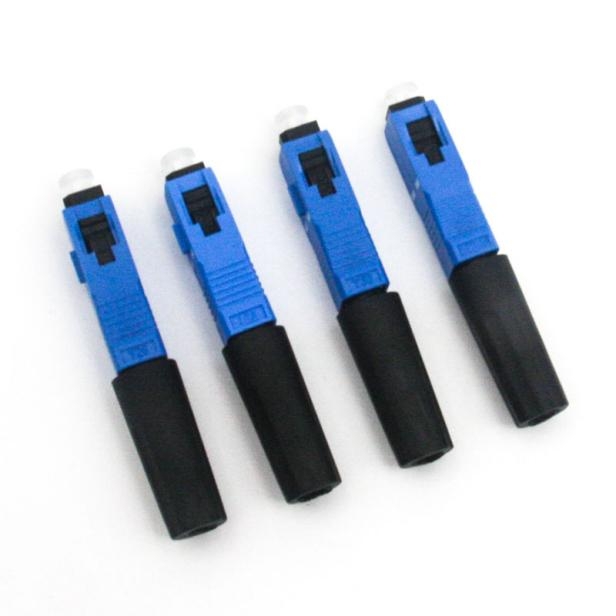

UPC (Ultra Physical Contact)

UPC ferrules go through multi-round fine grinding to form a mild rounded flat end face with a 0-degree vertical surface facing the light source. This design delivers typical insertion loss under 0.3dB and return loss ranging from -50dB to -55dB. Manufacturing costs for UPC connectors stay relatively affordable, and their flat surface is simple to wipe and maintain on-site. They fit most pure digital transmission scenarios, including office Ethernet, factory monitoring fiber links and short-distance internal data trunk lines. In these systems, slight signal back-reflection creates negligible interference for digital laser signals, so UPC fully meets daily operation demands.

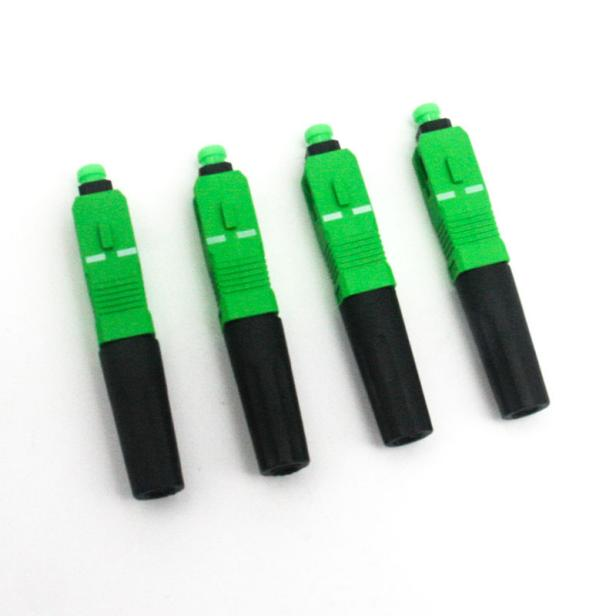

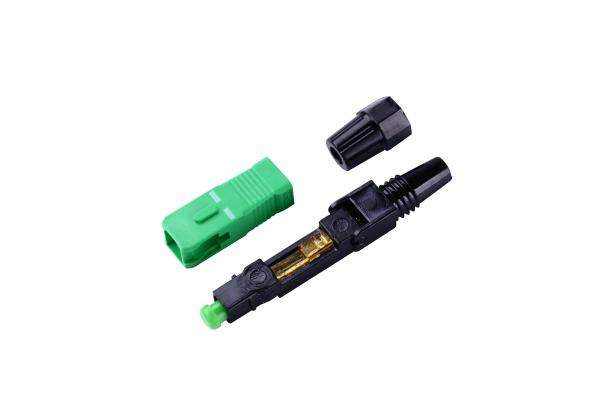

APC (Angled Physical Contact)

APC ferrules feature an 8-degree sloped polished end face, a key design that deflects reflected light into the fiber cladding instead of bouncing back to the laser transmitter. Well-made APC fast connectors easily hit return loss above -60dB, effectively eliminating signal distortion caused by back reflection. This unique performance is irreplaceable for specific optical transmission systems. When lines carry analog CATV video signals or run sensitive PON equipment, back-reflected light will lead to picture snowflakes, frequent ONU offline and unstable broadband signals without APC connectors. Any long-distance high-power optical transmission projects also require APC polishing standards.

Cross-mating UPC and APC connectors on one fiber link is strictly forbidden. Mismatched flat and angled end faces cannot form tight optical contact, pushing insertion loss to over 1dB and crippling normal signal transmission. Use UPC fast connectors for standard digital Ethernet links to control costs; APC fast connectors are mandatory for CATV, PON passive optical networks and high-precision optical transmission equipment.

Step-by-Step Tips to Select Matching Fiber Fast Connectors

Fiber fast connectors refer to field-installable, epoxy-free and pre-terminated components that skip complex on-site grinding and welding. When picking the right model for your project, evaluate conditions from four practical angles:

1. Match connector form factor to construction environment

Check cable bending requirements first: SC connectors deliver stronger cable strain relief and hold fiber more firmly under sharp 90-degree bends, ideal for complicated outdoor wiring paths. If you install dense patch panels and indoor distribution frames with limited internal space, LC connectors are the only viable option to maximize port quantity.

2. Confirm signal transmission demands to select polishing type

Clarify whether your network runs a PON passive optical system or ordinary local area network:

· Projects transmitting analog cable TV signals or building FTTH GPON/XGS-PON networks must adopt APC fast connectors to avoid image distortion and user disconnection faults;
· Ordinary 1G/10G office data transmission only needs UPC fast connectors, which cut overall procurement costs without sacrificing basic signal quality.

3. Check compatibility with on-site fiber cable specifications

Distinguish your fiber type: common options include 900µm tight-buffered indoor fiber and 3.0mm butterfly FTTH drop cable. Not all fast connector models support every cable size, so verify compatibility before bulk ordering. Our R&D team at OYI designs our full line of fast connectors with wide compatibility to fit mainstream fiber specifications, helping clients reduce spare part inventory pressure for different projects. We also offer free sample matching testing for customers with special cable models.

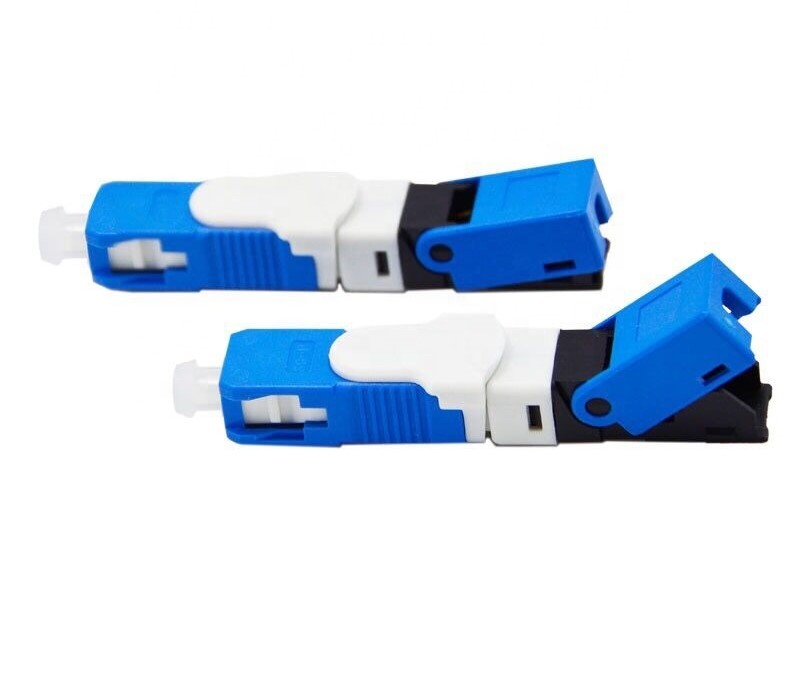

4. Pick the right field termination structure

Two mainstream fast connector structures dominate the market: mechanical splice style and pre-cleaved stub style. For long-term stable high-speed fiber links, we recommend pre-cleaved stub connectors. Their factory pre-processed fiber ends guarantee consistent low insertion loss and far better durability after repeated disassembly compared to basic mechanical splicing versions.

Why Source Your Fiber Fast Connectors Directly from OYI International.LTD?

At OYI International., Ltd., we don’t just supply standardized fiber components—we deliver stable, environment-adapted products tailored to diverse global construction conditions. Our dedicated R&D team of over 20 technical specialists carries out full rounds of performance testing for every batch of SC, LC, UPC and APC fast connectors, covering insertion loss, return loss and tensile resistance indicators to meet international telecom industry standards.

Selecting suitable fiber fast connectors does not require overly complicated technical knowledge; stick to two straightforward core rules:

Form factor selection: Choose durable SC connectors for low-density outdoor FTTH wiring; opt for compact LC connectors for high-density indoor data center racks.

Polishing standard selection: UPC fits general pure digital data transmission for cost savings, while APC is a must for analog video, PON and high-precision optical signal transmission.

If you still struggle to confirm the right fast connector model for your project’s specific cable type, signal system or construction environment, reach out to the professional sales and technical team at OYI right away. Backed by decades of fiber optic manufacturing experience and a global service network, we act as your reliable long-term partner for all fiber connectivity projects, supporting you to build stable, cost-effective and future-proof optical networks.
