MPO PRE-TERMINATED RACK MOUNT

OPERATING MANUAL

Rack Mount fiber optic MPO patch panel is used for connection, protection and management on trunk cable and fiber optic. And popular in Data center, MDA, HAD and EDA on cable connection and management. Be installed in 19-inch rack and cabinet with MPO module or MPO adapter panel.
It can also use widely in Optical fiber communication system, Cable television system, LANS, WANS, FTTX. With material of cold rolled steel with Electrostatic spray, good looking and sliding-type ergonomic design.


WhatsApp email

Product Detail

FAQ

Product Tags

Product Description

Rack Mount fiber optic MPO patch panel is used for connection, protection and management on trunk cable and fiber optic. And popular in Data center, MDA, HAD and EDA on cable connection and management. Be installed in 19-inch rack and cabinet with MPO module or MPO adapter panel.
It can also use widely in Optical fiber communication system, Cable television system, LANS, WANS, FTTX. With material of cold rolled steel with Electrostatic spray, good looking and sliding-type ergonomic design.

Product Features

operating environment：
1.Operating Temperature Range： -5℃～＋40℃.
2.Storage Temperature Range： －25℃～＋55℃.
3.Relative Humidity：25%～75%（+30℃）.
4.Atmospheric Pressure： 70～106kPa.

Mechanical Properties：
1.Module controlled from Bending radius.
2.Remarks for each port to avoid confusion during maintenance.
3.Flame retardant performance can meet the standard of V-0 under GB/T5169.16 table 1.

Structure and Specification

Components:
1.Housing（Thickness of metal material:1.2mm）.
2.Model A:12F MPO-LC MODULE Dimension(mm)：29×101×128mm.
3.Fixed device for patch cord.
4.LC Duplex adapter, MPO Adapter.
5.Winding ring.

Specification:
1.1U 48F-96-core.
2.4sets of 12/24F MPO-LC module.
3.Top cover in tower-type frame and easy for cable connected.
4.Low Insertion Loss and High return Loss.
5.Independent winding design on module.
6.The front of the panel is transparent and easy to revolve.
7.High-quality for electrostatic anticorrosion.
8.Robustness and shock resistance.
9.With fixed device on frame or mount, it can easy to adjust hanger from different installation.
10.Be installed in 19-inch rack and cabinet.

Specification and Capacity

Rackmount patch panel specification(metal housing）

NO

Qty of cores

Material of housing

Dimension（mm）

W×D×H

1

48/96

Metal

483

215

44
OPERATING MANUAL
OPERATING MANUAL1

Packaging Information

NO

MODEL NAME

Dimensions（mm）

W×D×H

Descriptions

Color

Remark

1

48/96-core MPO Pre-terminated Rack mount

483×215x44mm

1U BOX+4*12/24F MPO-

LC MODULE

RAL9005

COLOR

AVAILABLE

2

12F/24F MPO-LC MODULE

116*100*32mm

1*MPO ADAPTER+ 6*LC

DX ADAPTE+1*12F MPO-

LC PATCH CORD

RAL9005

COLOR

AVAILABLE
OPERATING MANUAL3

MODEL A: 24F MPO-LC MODULE

MODELB: 12F MPO-LC MODULE

OPERATING MANUAL4
OPERATING MANUAL5
OPERATING MANUAL6

 Inner box

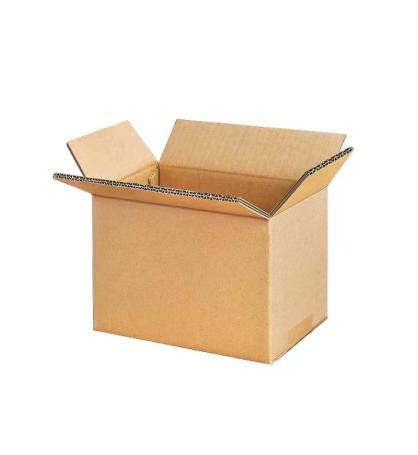

Outer Carton
