News - Not All Patch Cords Are the Same — How to Choose the Right One for Your Network

When building a data center, deploying an FTTH network, or upgrading enterprise cabling infrastructure, many buyers assume that all fiber patch cords perform the same. In practice, however, differences in fiber type, connector polishing, jacket material, and cable structure can directly affect network stability and transmission performance.Choosing the wrong patch cord may lead to higher attenuation, unstable signals, or unexpected downtime after installation. That’s why selecting the right specification for the actual deployment environment is critical.

Founded in 2006, Oyi International, Ltd. is a Shenzhen-based fiber optic manufacturer with nearly 20 years of experience in fiber connectivity products and customized optical solutions. Serving telecom operators, contractors, and network integrators worldwide, OYI focuses on reliable manufacturing, strict quality control, and flexible OEM/ODM production.

Choose the Correct Fiber Type

The first step is determining whether the application requires single-mode or multimode fiber. Using the wrong type is one of the most common causes of signal loss and link failure.

1.Single-Mode Patch Cord (OS1/OS2)

Single-mode patch cords feature a 9μm fiber core that allows light to travel with minimal dispersion, making them ideal for long-distance optical communication. Depending on network architecture and equipment performance, transmission distances can range from a few kilometers to well over 100 kilometers.

Because of their ability to maintain signal integrity over extended distances, single-mode patch cords are widely used in telecommunications networks and other large-scale optical infrastructure projects.

Typical applications include:

1) Telecommunications and carrier backbone networks

2) FTTH feeder and distribution networks

3) Campus and metropolitan area network backbones

4) Long-distance WAN connections

5) Data center interconnection (DCI)

For these scenarios, low attenuation and consistent signal quality are critical. OYI's OS2 single-mode patch cords are manufactured and tested to ensure reliable performance in high-bandwidth optical networks, supporting applications ranging from carrier-grade telecommunications infrastructure to modern 10G, 100G, and higher-speed transmission systems.

2.Multimode Patch Cord (OM2/OM3/OM4/OM5)

Multimode fiber features a larger core size, typically 50μm or 62.5μm, making it well suited for high-speed, short-distance data transmission within buildings and campus environments. Its cost-effectiveness and compatibility with high-bandwidth applications have made it a popular choice for enterprise networks and modern data centers.

6) Typical applications include:

7) Data center rack-to-rack connections

8) Enterprise LAN systems

9) Server and storage area networks (SAN)

10) High-density data center environments

11) Short-distance backbone cabling within buildings

OM3 and OM4 multimode patch cords are widely deployed in data centers to support 10G, 40G, and 100G Ethernet transmission over distances of up to 300 meters. OM5 further enhances bandwidth utilization through shortwave wavelength division multiplexing (SWDM), making it an attractive option for next-generation high-density data center infrastructure and high-speed data transmission applications.

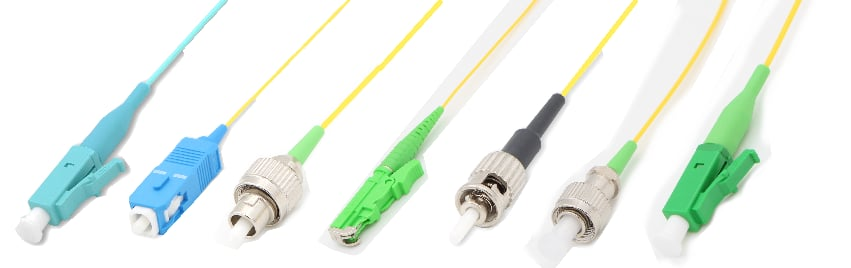

Match the Connector Type to Your Equipment

Connector compatibility is another key consideration. Buyers should confirm both the connector format and the polishing type before purchasing.

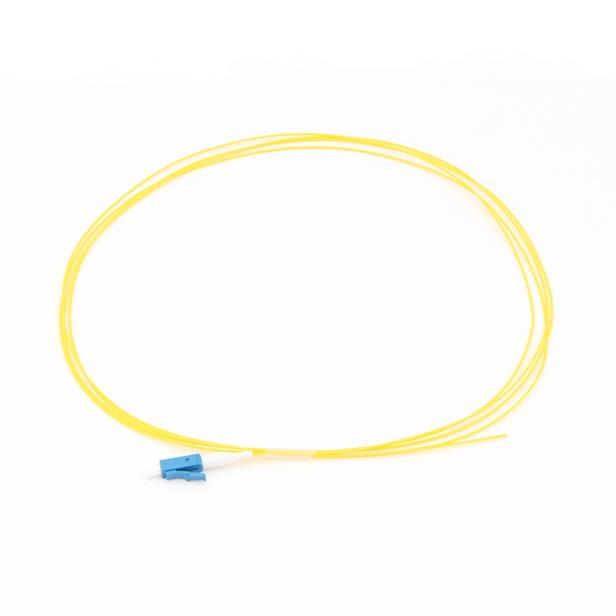

1.LC Connector

LC connectors are compact and support high-density installations. They are widely used with SFP and SFP+ transceivers in modern data centers.

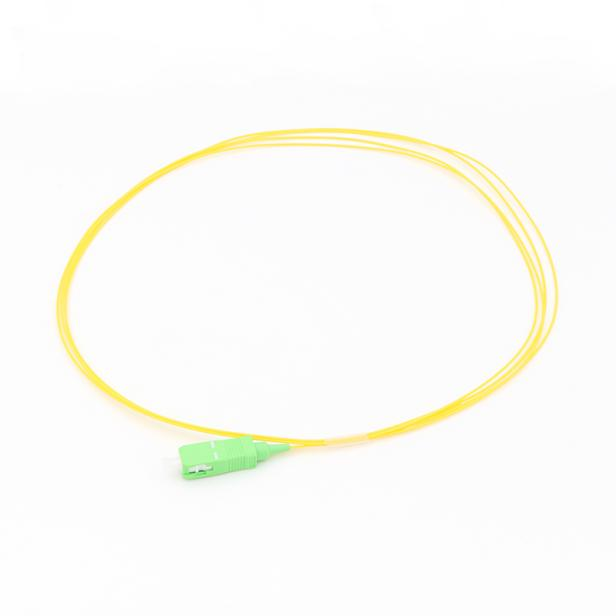

2.SC Connector

SC connectors use a push-pull structure and are commonly found in FTTH access networks, ONU equipment, and telecom distribution frames.

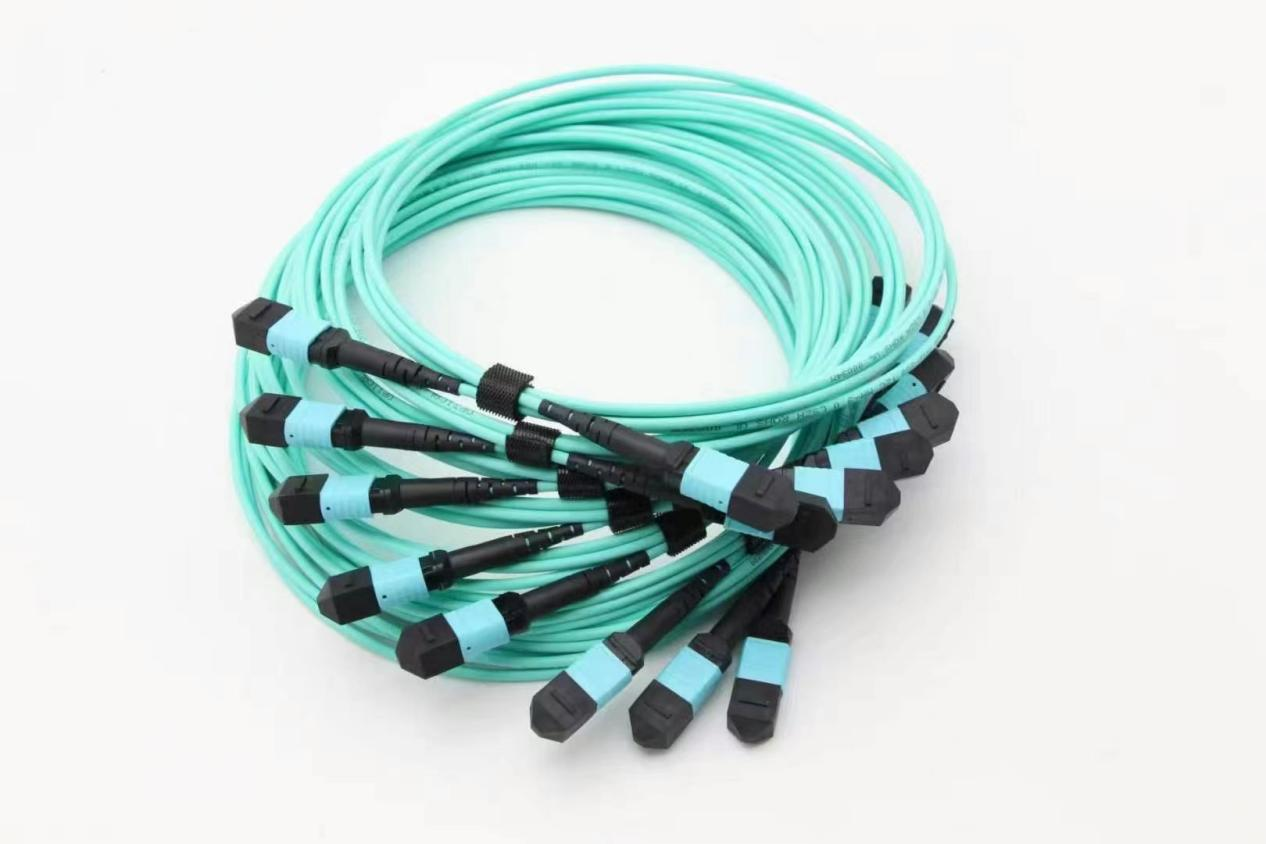

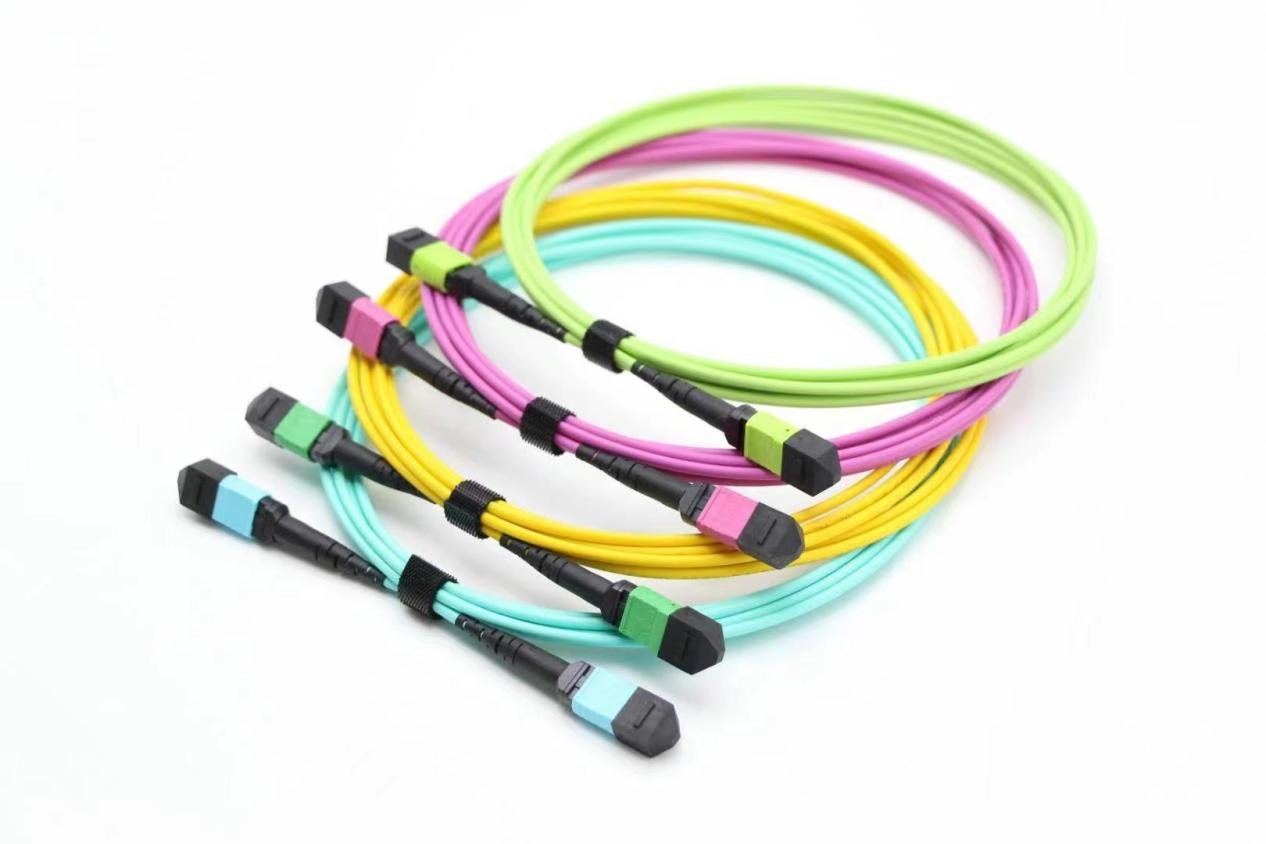

3.MPO/MTP Connector

MPO/MTP connectors support multi-fiber connections and are designed for 40G, 100G, and 400G high-speed transmission systems.

They are commonly used in:

1) Pre-terminated trunk cabling

2) Hyperscale data centers

3) High-density backbone links

4.FC and ST Connectors

FC and ST connectors are more common in older industrial systems and legacy network upgrades.

For mixed interface environments, hybrid patch cords such as LC-SC or LC-FC are often required. OYI supports customized connector combinations for different project requirements.

5.UPC vs APC Polishing

UPC connectors feature a flat polished surface and are suitable for standard digital communication networks, including LAN and data center applications.

APC connectors use an 8-degree angled polish to reduce back reflection. They are commonly required in CATV and RF optical transmission systems where reflection control is critical.

Choosing the right connector starts with understanding your equipment interface and network requirements. LC connectors are typically preferred for modern data centers and high-density cabling, SC connectors remain common in FTTH and telecommunications networks, while MPO/MTP connectors are the standard choice for 40G, 100G, and 400G high-speed backbone links. FC and ST connectors are mainly used in industrial applications and legacy systems.

In addition to connector type, the polishing standard is equally important. UPC connectors are suitable for most data communication applications, including enterprise networks and data centers, whereas APC connectors are recommended for FTTx, CATV, and other networks where low back reflection is critical. Selecting the correct combination of connector type and polish ensures optimal compatibility, stable signal transmission, and long-term network reliability.

Select the Right Jacket Material

The outer jacket affects durability, fire resistance, and environmental suitability.

1.PVC Jacket

PVC is flexible and cost-effective for standard indoor environments such as equipment rooms and office cabling.

2.LSZH Jacket

LSZH (Low Smoke Zero Halogen) jackets emit less toxic smoke during combustion and are commonly required in:

1) Commercial buildings

2) Underground facilities

3) Public transportation systems

4) Data centers

3.Outdoor and Armored Patch Cords

For industrial or outdoor environments, armored patch cords provide better resistance against crushing, pulling, and rodent damage.

Outdoor PE jackets are suitable for:

1) Pole-mounted deployment

2) Underground routing

3) Harsh weather conditions

Choose the Proper Cable Structure and Length

1.Simplex, Duplex, and MPO Structures

Duplex patch cords are the standard choice for most bidirectional communication systems.

Simplex cords are typically used for single-direction transmission, while MPO multi-core assemblies are preferred in high-density trunk cabling.

For installations involving frequent movement or tight routing, armored duplex cables can help reduce the risk of fiber damage.

2.Length Selection

Using cables that are too long can create unnecessary congestion inside cabinets, while cables that are too short may place excessive tension on the fiber.

It is recommended to:

1) Measure the actual routing path

2) Reserve additional slack for maintenance

3) Avoid excessive cable loops

OYI provides customized patch cord lengths ranging from short indoor jumpers to kilometer-level outdoor assemblies.

Additional Tips for Choosing Reliable Patch Cords

Low-quality patch cords often show unstable insertion loss after extended use, which may lead to intermittent signal interruptions.

Before purchasing, buyers should confirm that the supplier provides:

1) Factory testing reports

2) Insertion loss and return loss data

3) Stable polishing quality

4) Consistent production standards

For modern 400G data center applications, bend-insensitive fiber is strongly recommended to reduce attenuation caused by tight cable management.

It is also helpful to work with manufacturers that support customized labeling, special jackets, and mixed connector configurations for easier project management.

With nearly two decades of manufacturing experience, OYI performs quality inspection throughout the entire production process, from raw material testing to finished product verification, covering a full range of fiber patch cord solutions for telecom, enterprise, and industrial applications.

Selecting the right patch cord is not simply about choosing a connector type. Factors such as fiber mode, polishing standard, jacket material, cable structure, and installation environment all play an important role in long-term network performance.A properly matched patch cord solution helps reduce maintenance costs, improve transmission stability, and simplify future upgrades.
