24-48Port, 1RUI2RUCable Management Bar Included
Cat5/Cat6 110-Style Patch Panel
24-48Port, 1RUI2RUCable Management Bar Included
Product Features
1. Ingenious Design, Flexible Cabling
This panel delivers excellent performance and facilitate quick and easy installations. It is the ideal way to create a standards-based, flexible, and reliable copper platform in your data center.
2.110 Punch Down Termination, Long Distance Cabling
110-type punch down termination, making it easy to insert and remove your cables. Ideal for long distance horizontal cabling applications.
3.Up to 10 Gigabit Speed Transmission Performance
The RJ45 jack panel keystones are 50u golden plated to support better network connection up to 10G speed Ethernet network. This is the perfect choice for demanding network applications.
4.Compatible with Cat6 and Cat5e Cabling
This Cat6 110 punch down patch panel is compatible with Cat6 and Cat5e UTP Cables, ideal for Fast Ethernet and Ethernet applications.
5.Ensures Long Life in Demanding Applications
The 1U 24 ports UTP Cat6 110 punch down unshielded patch panel with phosphor bronze wire clip can be rewired up to 250 times. Cold-rolled steel construction ensures ultimate durability.
6.Suitable for High Density Solutions for Space Saving
The 24-port Cat6 patch panel fits on racks or cabinets with 19 inch mounting widths, perfect for high density and easy patching solutions in data centers.
Specifications
|
Category |
Cat5e/Cat6/Cat6a |
No. of Ports |
24/48 |
|
Shielding Type |
Unshielded |
No. of Rack Spaces |
1u/2u |
|
Material |
SPCC + ABS Plastics |
Color |
Black |
|
Termination |
110 Type Punch down |
Wiring Scheme |
T568A/T568B |
|
Type of Patch Panel |
Flat |
PoE Compatibility |
PoE/PoE+ (IEEE 802.3af/at) |
|
Size |
1.75"x19"x1.2" (44.5x482.5x30.5mm) |
Operating Humidity Range |
10% to 90% Relative Humidity |
|
Operating Temperature Range |
-10°C to 60°C |
Operating Humidity Range |
RoHS Compliant |

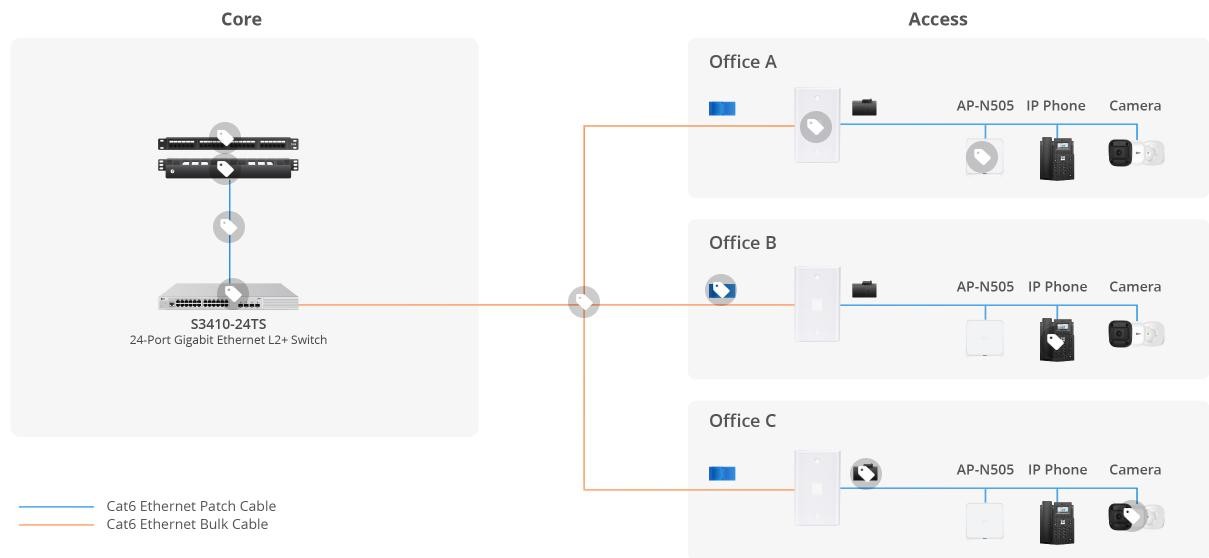

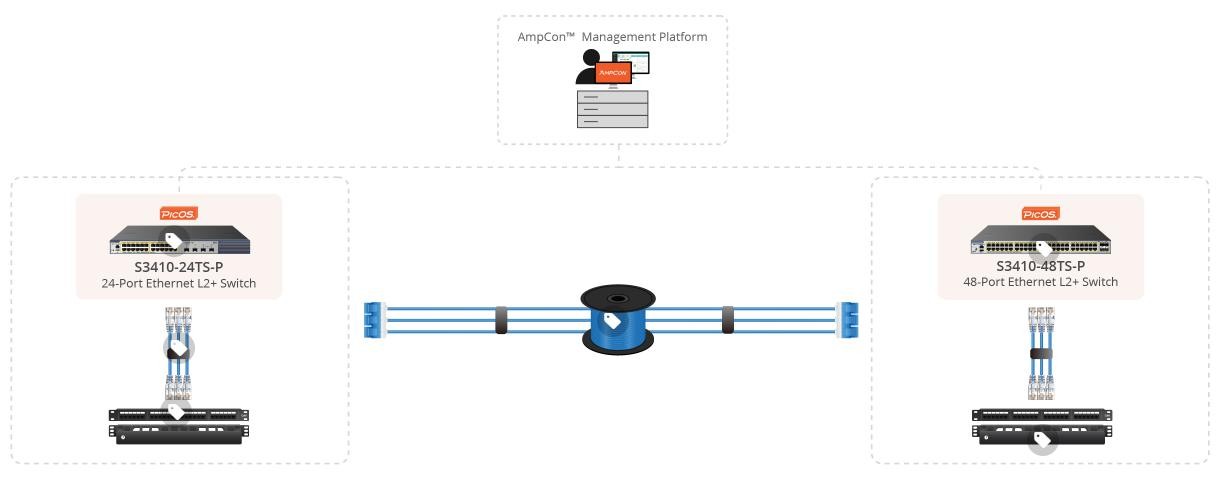

Connectivity Solutions
Enterprise Office Network Cabling Management
Data Center Horizontal cabling Management
Operating Instructions

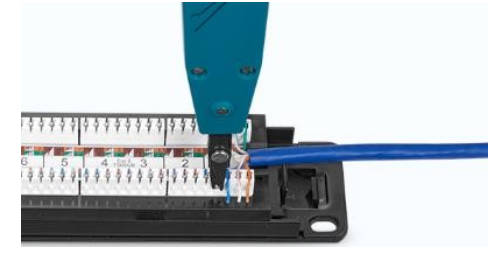

Use it with the punch-down tool for easier wiring.

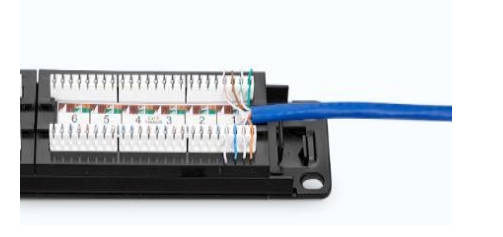

1. Arrange the wires
2. Push the wires into the IDC according to T568A/T568B color code

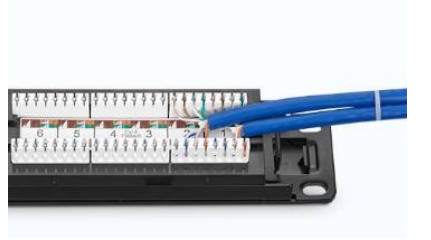

3. Impact and fix the wires, cut off the excess wires
4. Use cable ties to secure the wire, the installation is complete

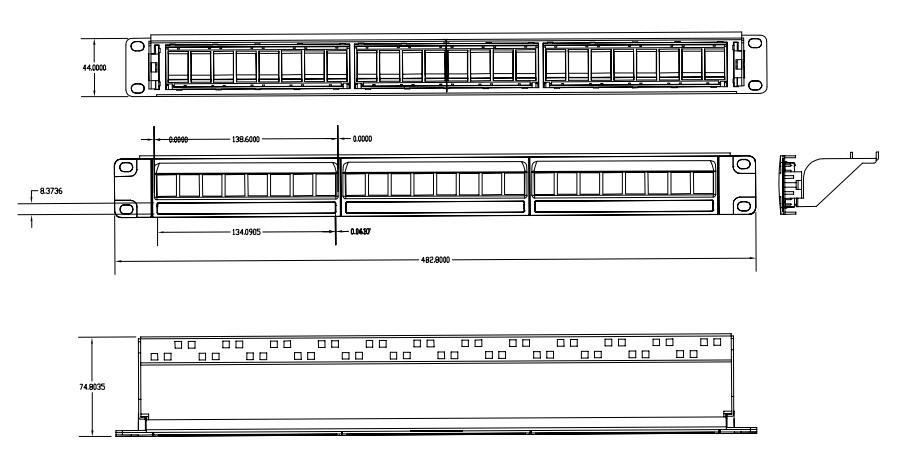

Product Drawing

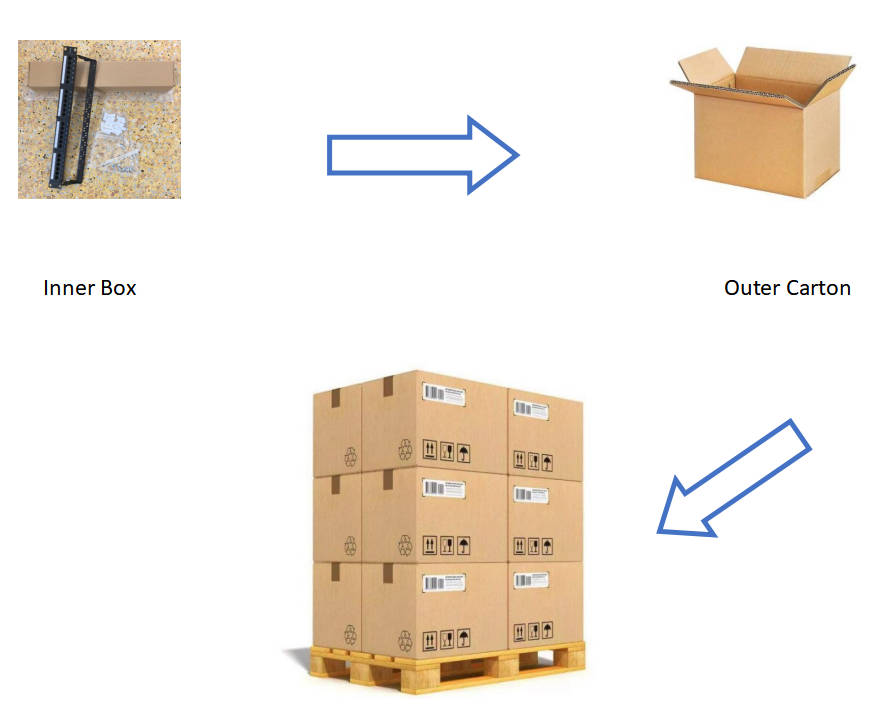

Packaging Information
1. Quantity: 30pcs/Outer box.
2. Carton Size: 52.5*32.5*58.5cm.
3. N. Weight: 24kg/Outer Carton.4. G. Weight: 25kg/Outer Carton.
5. OEM service available for mass quantity, can print logo on cartons.
-
OYI-IW series
