News - What is ADSS Cable?

In today's fast-paced digital world, reliable and high-performance communication networks are essential. The increasing demand for high-speed internet, cloud computing, and smart grid technologies has driven the need for advanced fiber optic solutions. One of the most innovative and widely used fiber optic cables in modern telecommunications and power transmission is the All-Dielectric Self-Supporting (ADSS) cable.

ADSS cables are revolutionizing the way data is transmitted over long distances, particularly in overhead installations. Unlike traditional fiber optic cables that require additional support structures, ADSS cables are designed to be self-supporting, making them a cost-effective and efficient solution for utility and telecom companies.

As a leading fiber optic solutions provider, OYI International Ltd . specializes in manufacturing high-quality ADSS, OPGW, and other fiber optic cables designed to meet global industry standards. With over 19 years of expertise in fiber optic technology, we have supplied our products to 143 countries, serving telecom operators, power utilities, and broadband service providers worldwide.

What ADSS cable is and how it works?

1.Its key features, benefits, and technical specifications.

2.Different types of ADSS cables (FO ADSS, SS ADSS).

3.Applications of ADSS cables in various industries.

4.How ADSS compares to OPGW and other fiber optic cables.

5.Installation and maintenance considerations.

6.Why OYI is a trusted ADSS cable manufacturer.

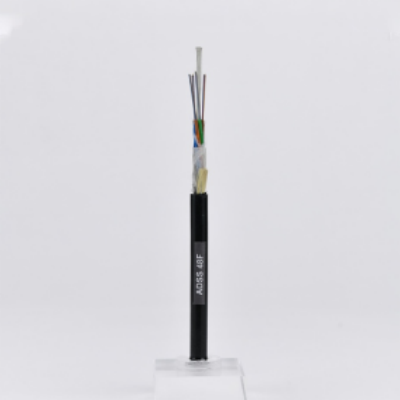

What is ADSS Cable?

ADSS (All-Dielectric Self-Supporting) cable is a specialized type of fiber optic cable designed for overhead installations without requiring a separate messenger wire or support structure. The term "all-dielectric" means that the cable contains no metallic components, making it immune to electromagnetic interference (EMI) and lightning strikes.

How Does ADSS Cable Work?

ADSS cables are typically installed on existing power transmission towers, telecommunication poles, or other aerial structures. They are engineered to withstand mechanical stresses such as wind, ice, and temperature fluctuations while maintaining optimal signal transmission.

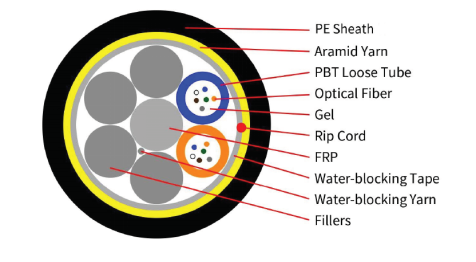

The cable consists of:

Optical fibers (single-mode or multi-mode) for data transmission.Strength members (aramid yarn or fiber glass rods) for tensile support.Outer sheath (PE or AT-resistant material) for weather protection.Because ADSS cables are self-supporting, they can span long distances (up to 1,000 meters or more) between poles, reducing the need for additional reinforcement.

Key Features and Benefits of ADSS Cable

ADSS cables offer several advantages over traditional fiber optic cables, making them ideal for various applications:

1. Lightweight & High Tensile Strength

Made with aramid yarn and fiberglass rods, ADSS cables are lightweight yet strong enough to support their own weight over long spans.Can withstand mechanical stress from wind, ice, and environmental factors.

2. All-Dielectric Construction (No Metal Components)

Unlike OPGW cables, ADSS cables contain no conductive materials, eliminating risks of:

Electromagnetic interference (EMI).

Short circuits.

Lightning damage.

3. Weather and UV Resistant

The outer sheath is made of high-density polyethylene (HDPE) or anti-tracking (AT) material, protecting against:

Extreme temperatures (-40°C to +70°C).

UV radiation.

Moisture and chemical corrosion.

4. Easy Installation & Low Maintenance

Can be installed on existing power lines without additional support structures.

Reduces labor and installation costs compared to underground fiber optic cables.

5. High Bandwidth & Low Signal Loss

Supports high-speed data transmission (up to 10Gbps and beyond).

Ideal for 5G networks, FTTH (Fiber to the Home), and smart grid communications.

6. Long Lifespan (Over 25 Years)

Designed for durability in harsh environments.

Requires minimal maintenance once installed.

Types of ADSS Cables

ADSS cables are available in different configurations based on their structure and application:

1. FO ADSS (Standard Fiber Optic ADSS)

Contains multiple optical fibers (from 2 to 144 fibers).Used in telecom networks, broadband, and CATV systems.

2. SS ADSS (Stainless Steel Reinforced ADSS)

Features an additional stainless-steel layer for extra tensile strength.Ideal for high-wind regions, heavy ice-loading areas, and long-span installations.

3. AT (Anti-Tracking) ADSS

Designed for high-voltage power line installations.Prevents electrical tracking and degradation in polluted environments.

ADSS vs. OPGW: Key Differences

While both ADSS and OPGW (Optical Ground Wire) cables are used in overhead installations, they serve different purposes:

Feature ADSS Cable OPGW Cable

Material All-dielectric (no metal) Contains aluminum and steel for grounding.Installation Hung separately on power lines Integrated into power line ground wire.Best For Telecom, broadband networks High-voltage power transmission lines.EMI Resistance Excellent (no interference) Susceptible to electrical interference.Cost Lower installation cost Higher due to dual functionality.

When to Choose ADSS Over OPGW?

Telecom and broadband deployments (no need for grounding).Retrofitting existing power lines (no need to replace OPGW).Areas with high lightning risk (non-conductive design).

Applications of ADSS Cables

1. Telecommunications & Broadband Networks

Used by ISPs and telecom operators for high-speed internet and voice services.Supports 5G backhaul, FTTH (Fiber to the Home), and metro networks.

2. Power Utilities & Smart Grids

Installed alongside high-voltage power lines for grid monitoring.Enables real-time data transmission for smart meters and substation automation.

3. CATV & Broadcasting

Ensures stable signal transmission for cable TV and internet services.

4. Railway & Transportation

Used in signaling and communication systems for railways and highways.

5. Military & Defense

Provides secure, interference-free communication for defense networks.

Installation and Maintenance Considerations

Span Length: Typically100m to 1,000m, depending on cable strength.

Sag & Tension Control: Must be calculated to avoid excess stress.

Pole Attachment: Installed using special clamps and dampers to prevent vibration damage.

Maintenance Tips

Regular visual inspections for sheath damage.

Cleaning of pollution-prone areas (e.g., industrial zones).

Load monitoring in extreme weather conditions.

Why Choose OYI for ADSS Cables?

As a trusted fiber optic cable manufacturer since 2006, OYI International Ltd. delivers premium-quality ADSS cables tailored to global market needs.

Our Advantages:

High-Quality Materials - Corrosion-resistant, UV-protected, and durable.Custom Solutions - Available in different fiber counts (up to 144 fibers) and tensile strengths.Global Reach - Exported to 143+ countries with 268+ satisfied clients.OEM & Financial Support - Custom branding and flexible payment options available.R&D Expertise - Over 20 specialized engineers continuously improving product performance.

ADSS cables are a game-changer in modern communication and power transmission networks, offering a lightweight, interference-free, and cost-effective solution for overhead installations. Whether you need FO ADSS ser optic solutions tailored to your project requirements.
