All-Dielectric Self-Supporting (ASU) fiber optic cables represent an innovative leap in outdoor network connectivity. With robust mechanical design, extended spanning capacity between poles, and compatibility with aerial, duct and direct-buried deployment, ASU cables provide operators with unmatched future-proofing and infrastructure flexibility.
This article explores critical ASU cable capabilities, real-world applications, proper installation methodologies, and the promising role this outdoor fiber platform will play in supporting smart communities of the future.
ASU Cable Design and Composition
While traditional fiber optic cable types like ADSS rely on integrated steel reinforcements for pole-to-pole spans, ASU cables achieve equivalent strength through a dielectric central strain member made of glass-fiber and aramid yarns or resin rods.
This all-dielectric design prevents corrosion while minimizing cable weight for extended span lengths up to 180 meters unsupported. Tensile loads up to 3000N ensure resilience even in severe wind and icing conditions.
Loose buffer tubes house individual 250um fibers, providing protection within a water-blocking gel or foam. The overall structure is completed using a HDPE or MDPE jacket, granting durability across decades of expected lifetime.
Advanced fiber materials like G.657 bend-insensitive fiber are also being utilized within the loose tube core, delivering maximal performance over thousands of bend cycles across conduit pathways or aerial installations.
The unmatched versatility of ASU cables makes them ideal across aerial, duct and direct-buried installation modes, supporting:
Long-Haul Aerial Runs: As an enhanced ADSS replacement, ASU cables grant extended span lengths between distribution poles across challenging terrain. This enables large-scale internetworking or backhaul links up to 60km.
Duct Pathways: ASU cables readily install via 9-14mm-microducts, simplifying network buildouts where underground pathways have been deployed. Their flexibility supports smooth conduit installation over longer distances versus armored cables.
Buried Connectivity: UV-resistant ASU variants give operators a cost-effective path to bury fiber along highways, railways, pipelines or other rights-of-way without needing expensive concrete encasement. Direct earth burial suits rural regions.
Hybrid Routes: ASU cables allow for routing diversity when transitioning between aerial spans, underground ducts and direct burial in a single long-haul run by adjusting construction techniques.

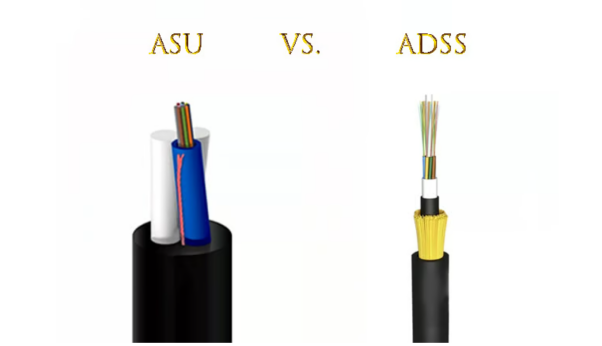

ASU Advantages Over ADSS
While traditional All-Dielectric Self-Supporting (ADSS) cables have long served aerial fiber rollouts, the next-generation ASU platform offers numerous advantages:
Extended Span Lengths: With a lighter, high-strength aramid central member, ASU cables achieve up to 180 meters spans versus 100-140 meters for legacy ADSS. This greatly reduces pole reinforcement and installation costs.
Corrosion Resistance: The all-dielectric design of ASU eliminates steel completely, preventing oxidation failure points over decades outdoors.
Low-Temperature Resilience: ASU cables maintain flexibility down to -40 Celsius, ensuring reliability even in extreme cold. ADSS cables become brittle below -20 Celsius.
Compact Size: With a reduced diameter, ASU cables minimize visual impact and wind loading across aerial routes in urban centers or environmentally sensitive regions.
Improved DQE: Signal loss is reduced thanks to evolving precision manufacturing for ASU buffer tubes and fibers, boosting optical performance.
Proper On-Site ASU Cable Installation
To fully capitalize on the ruggedness and functionality of ASU cables, proper handling and installation techniques are required:

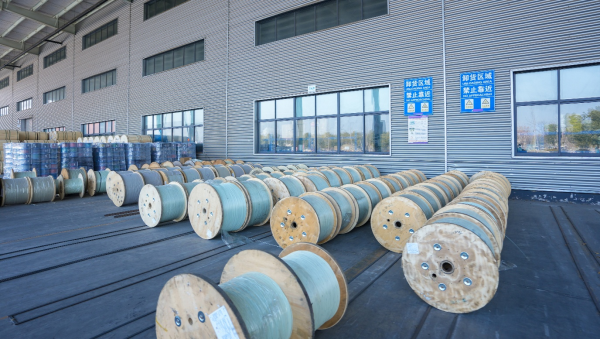

Storage: Reels should remain upright and indoors until deployment. Leave factory packaging intact before installation to prevent water ingress.
Preparation: Schematics must indicate exact conduit paths and pole types for aerial runs. Ensure suitable strand clamps and anchors are in place based on expected wind speeds.
Pole Work: Always use qualified technicians and bucket trucks for aerial operations. Leave sufficient excess cable slack at poles to prevent damage during inclement weather transients.
Pulling Lubrication: Use pulling grips and dynamometers to monitor tension, and always lubricate to reduce friction within conduits. This preserves the long-term integrity of the glass yarn strain carriers.
Bend Radius: Maintain a 20xD bend radius throughout handling and installation. Use large pulley sheaves wherever redirecting cable path.
Splicing: Perform any mid-span splices or terminations only within weatherproof enclosures. Ensure qualified fusion splicers and technicians handle optical splices.
Adhering to best practices preserves optical performance and enhances lifespan. Consult official standards like TL 9000 where applicable.ASU cables represent a core platform enabling the digital transformation of regions worldwide. As smart cities grow more ambitious in goals for sustainability, citizen services, safety and economic development, ubiquitous high-speed connectivity becomes mandatory.
With climate volatility also necessitating resilient infrastructure across both wireline and wireless networks, ASU cables provide hardiness across aerial, underground and direct-buried installation modes. This flexibility will grant cities both future-proof capacity and geographic reach as IoT integration accelerates. ASU formulations continue to evolve, delivering extended span lengths, reduced wind loading, and improved longevity in the harshest outdoor settings.
Whether progressing rural access, efficient internetworking between municipalities, or managing a complex urban mesh of data sources, self-supporting ASU technology propels smart communities over the digital divide.
ASU cables alleviate substantial barriers:
Rural Connectivity: For unincorporated and remote areas, aerial cables avoid the major cost of trenching ductwork. ASU enables faster deployment.
Urban Mobility: The compact footprint and low visual signature of ASU cables prevents aesthetic objections that can delay critical networks.
Sustainability: With low signal loss across extended spans, ASU cables minimize amplification needs across long routes, reducing power consumption.
Scalability: Network builders gain infrastructure that can easily scale capacity over time without new cable pulling thanks to unused dark fibers.
By providing versatility and performance improvements beyond conventional fiber cable alternatives like ADSS, self-supporting ASU represents the future-forward choice for communities pursuing smart status across power, water, transportation and civic operations.The outdoor connectivity platform and specialized implementation expertise are now in place to connect the world at light speed.
